26 x 50 AutoCAD Floor Plan with Elevation – 1

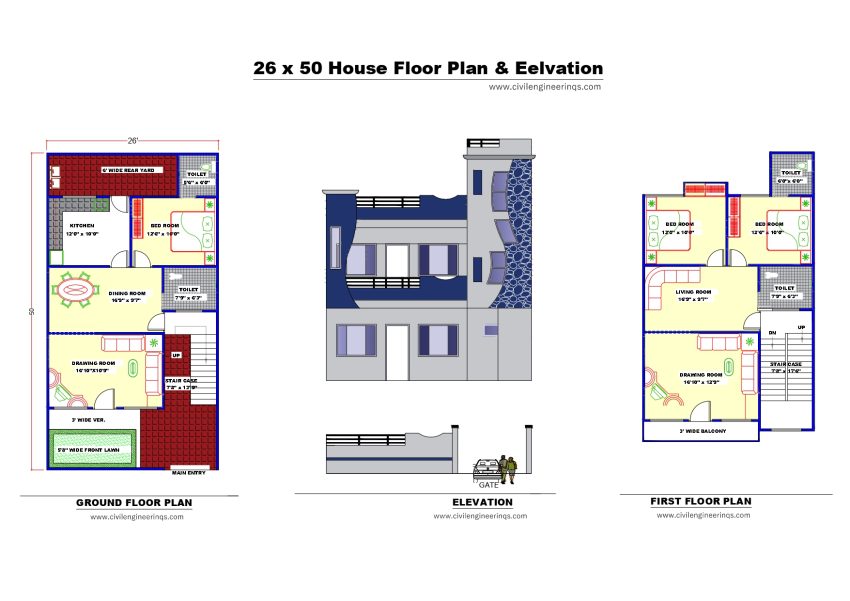

26 x 50 -Floor Plan with Elevation
Plot Size: 26′ x 50′ – 04 Bedroom House Design, 3BHK including GF-1BHK & FF-2BHK
Building Type: Ground Floor & First Floor -Approximate 1300 sqft
Purpose: Ideal for Joint Family
Ground Floor Features
-
Bedroom: 12’6″ x 10’0″ – Located at the rear-right side, with an attached Toilet size 5’6” x 6’0”
-
Dining Room: 16’9″ x 9’7″ – Centrally located, connecting to kitchen, drawing room, and bedroom.
-
Drawing Room: 16’10” x 10’9″ – Spacious front-facing room, ideal for receiving guests.
-
Kitchen: 12’0″ x 10’0″ – Positioned at the rear-left with direct access to the backyard.
-
Common Toilet (Middle): 7’9″ x 6’3″ – Centrally positioned for easy access from all rooms.
-
Staircase: 7’8″ x 13’9″ – Located adjacent to the entrance, providing access to the first floor.
First Floor Features
-
Bedroom 1 (Left): 12’0″ x 10’0″ – Located at the rear-left side. with attached Toilet 6’0″ x 6’0″
-
Bedroom 2 (Right): 12’6″ x 10’0″ – Rear-right side, adjacent to the other bedroom.
-
Living Room: 16’9″ x 9’7″ – Positioned in the center, creating a cozy family lounge.
-
Drawing Room: 16’10” x 12’9″ – Spacious front-facing room for entertainment and guests.
-
Common Toilet (Middle): 7’9″ x 6’3″ – Conveniently located between living and staircase area.
-
Balcony: 3′ Wide – Small front-facing balcony attached to the drawing room.
