35 x 60 AutoCAD Floor Plan with Elevation – 1

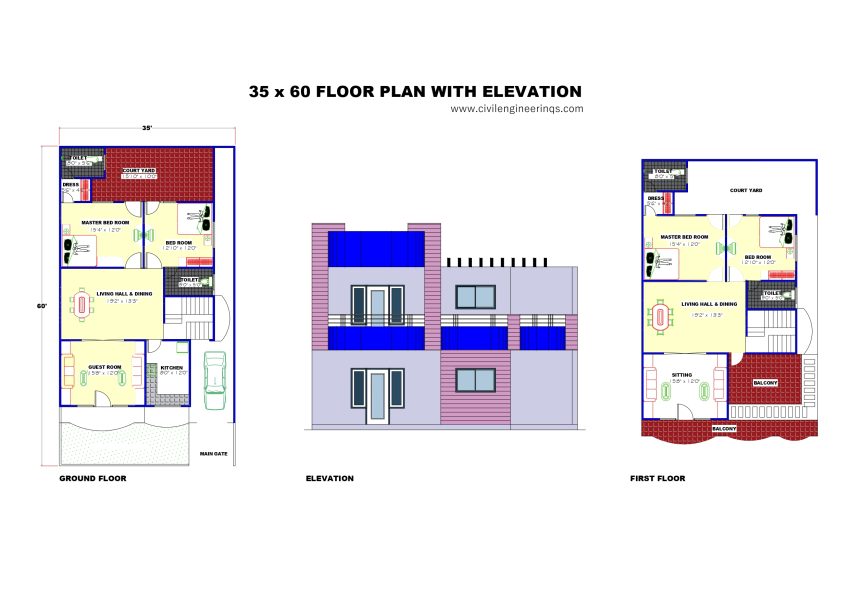

35 x 60 -Floor Plan with Elevation
Plot Size: 35′ x 60′ – 04 Bedroom House Design, 5BHK including GF-2BHK & FF-2BHK
Building Type: Ground Floor & First Floor -Approximate 2100 sqft
Purpose: Ideal for Joint Family
Ground Floor Features
-
Master Bed Room located at left rear side with the Size: 15′-4″ x 12′-0″ & attached Toilet: 8′-0″ x 5′-6″ also attached Dressing Room: 5′-6″ x 4′-2″
-
Bed Room located at right rear side with the Size: 12′-10″ x 12′-0″ & adjacent Common Toilet: 9′-0″ x 5′-0″
-
Guest Room located at front left side with the Size: 15′-8″ x 12′-0″
-
Living Hall & Dining located at center with the Size: 19′-2″ x 13′-3″ for easy access to all rooms
-
Kitchen located at front right side near main entrance with the Size: 8′-0″ x 12′-0″
-
Court Yard Size: 15′-0″ x 10′-0″ for ventilation and natural light
-
Main Gate with direct entry to car parking area and access to living room
First Floor Features
-
Master Bed Room located at left rear side with the Size: 15′-4″ x 12′-0″ & attached Toilet: 8′-0″ x 5′-6″ also attached Dressing Room: 5′-6″ x 4′-2″
-
Bed Room located at right rear side with the Size: 12′-10″ x 12′-0″ & adjacent Common Toilet: 9′-0″ x 5′-0″
-
Guest Room located at front left side with the Size: 15′-8″ x 12′-0″
-
Living Hall & Dining located at center with the Size: 19′-2″ x 13′-3″ for easy access to all rooms
-
Balcony / Sit Out can be access from living Hall & Sit out area
