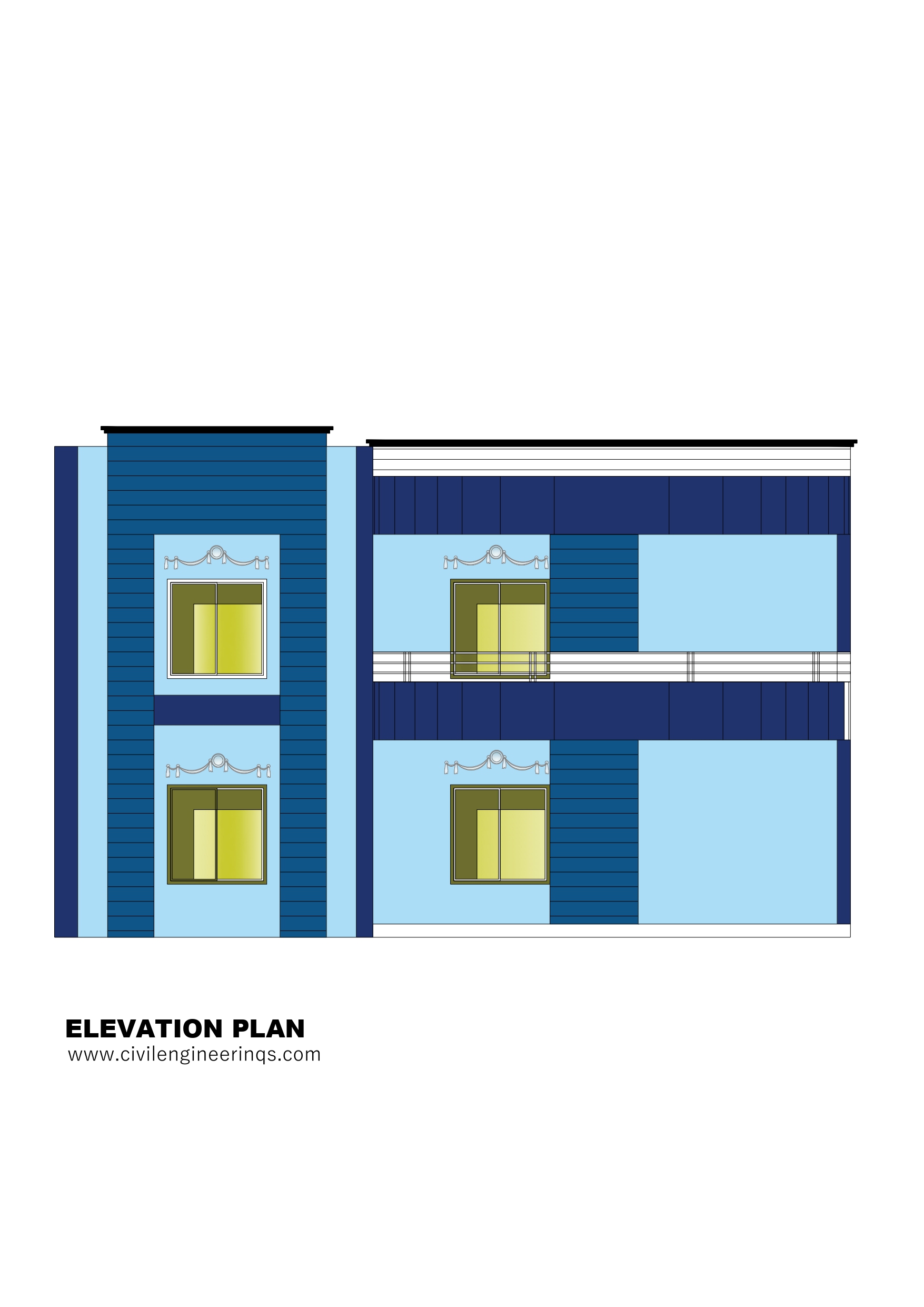

40 x 50 -Floor Plan with Elevation

Plot Size: 40′ x 50′ – 05 Bedroom House Design, 5BHK including GF-2BHK & FF-3BHK
Building Type: Ground Floor & First Floor -Approximate 2000 sqft
Purpose: Ideal for Joint Family

Ground Floor Features

Bedroom 1 located at rear side with the Size: 15′-4″ x 12′-4″ & Attached Toilet: 4‘-4″ x 7’-0″

Bedroom 2 located at left side with the Size: 15′-8″ x 13′-4″ & Attached Toilet: 8′-0″ x 6′-0″ also attached Dressing Room: 8′-0″ x 4′-8″

Dining & Living Hall located at center with the Size: 21′-0″ x 12′-4″easy access to all the building

Kitchen located at rear right side with the Size: 13′-2″ x 10′-4″

Store Room located beside kitchen with the Size: 6′-0″ x 10′-0″

Common Toilet located near Bedroom 1 with the Size: 3′-4″ x 7′-0″

Entrance Area size of 12′-0″ x 16′-0″ designed for guest sitting

Porch Size: 10′-4″ x 18′-0″ with the car parking facility

First Floor Features

Bedroom 1 located at rear side with the Size: 15′-4″ x 12′-4″ & Attached Toilet: 4′-4″ x 7′-0″

Bedroom 2 located at left side in fornd with the Size: 15′-8″ x 13′-4″ & Attached Toilet: 8′-0″ x 6′-0″ also attached Dressing Room: 8′-0″ x 4′-8″

Bedroom 3 located at rear right side with the Size: 13′-2″ x 10′-4″ & Attached Toilet: 6′-0″ x 6′-0″ also attached Dressing Room: 6′-0″ x 4′-8″

Dining & Living Hall located at center with the for easy access to all the rooms

Sit Out designed with the Size: 10′-4″ x 19′-0″
