40 x 50 Floor Plan with Elevation AutoCAD -3

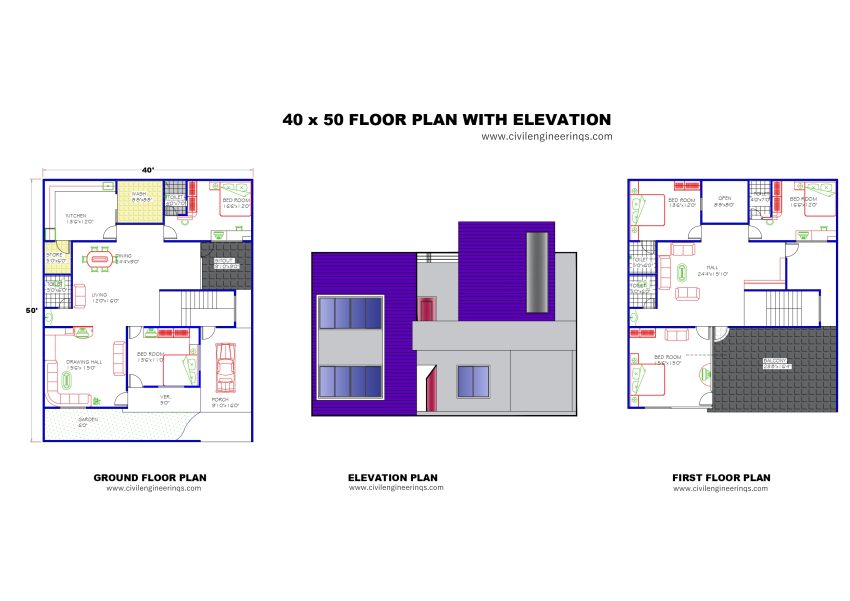

40 x 50 -Floor Plan with Elevation
Plot Size: 40’ x 50’ Approximate 2000 sqft
Plan Type: Residential Ground Floor Plan & First Floor
Ideal For : Joint Family
Ground Floor Plan (40’ x 50’)
- Porch: 9’-0” x 16’-0”
- Veranda: 5’-0”
- Drawing Hall: 15’-6” x 15’-0”
- Living Room: 12’-0” x 16’-0”
- Dining: 24’-4” x 9’-0”
- Kitchen: 13’-6” x 12’-0”
- Store: 5’-0” x 6’-0”
- Bedroom 1: 13’-6” x 11’-0”
- Bedroom 2: 16’-0” x 12’-0” with Attached Toilet
- Wash Area: 5’-0” x 6’-0”
- Toilet/Bath: 5’-0” x 5’-0”
First Floor Plan
- Hall: 24’-4” x 15’-0”
- Bedroom 3: 13’-6” x 12’-0” with attached toilet 5′ x 6′
- Bedroom 4: 16’-6” x 12’-0” with attached toilet 4′ x 7′
- Bedroom 5: 13’-6” x 15’-0”
- Common Toilets– 5′ x 6′
- Open Area: 8’-0” x 8’-0”
- Balcony: 23’-8” x 16’-4”
