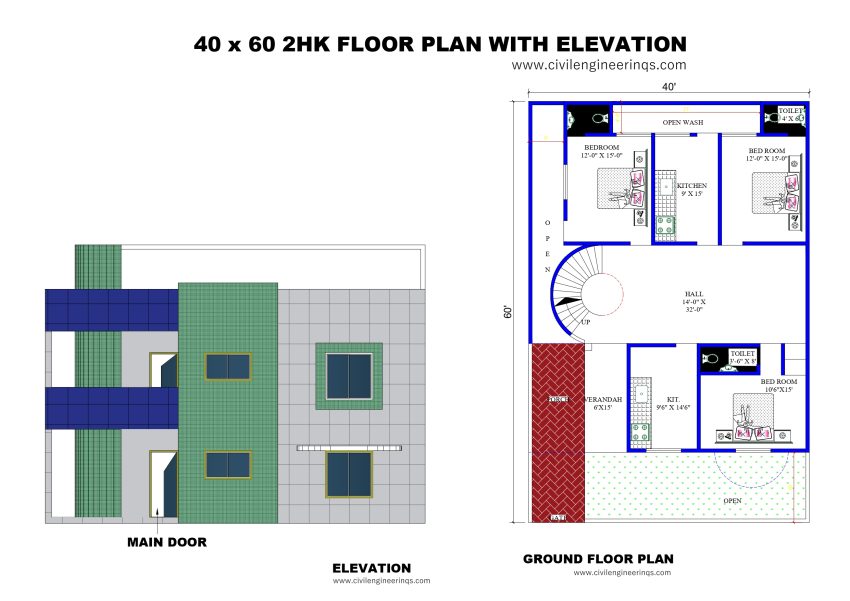

40 x 60 -Floor Plan with Elevation

Plot Size: 40′ x 60′ – 03 Bedroom House Design, 3BHK
Building Type: Ground Floor -Approximate 2400 sqft
Purpose: Ideal for Joint Family

• Hall: 14’-0” x 32’-0” (spacious central living area)

• Bedroom 1: 12’-0” x 15’-0” (with attached toilet 4’ x 6’)

• Bedroom 2: 12’-0” x 15’-0” (with attached toilet 4’ x 6’)

• Bedroom 3: 10’-6” x 15’ (with attached toilet 3’-6” x 8’)

• Kitchen 1: 9’-0” x 15’-0”

• Kitchen 2: 9’-6” x 14’-6”

• Verandah: 6’ x 15’ (front entrance)

• Open Wash Area at back side

• Open Space: both front and side for ventilation
