Tag: Bedroom with Attached Toilet

40 x 60 Floor Plan with Elevation AutoCAD & PDF Download

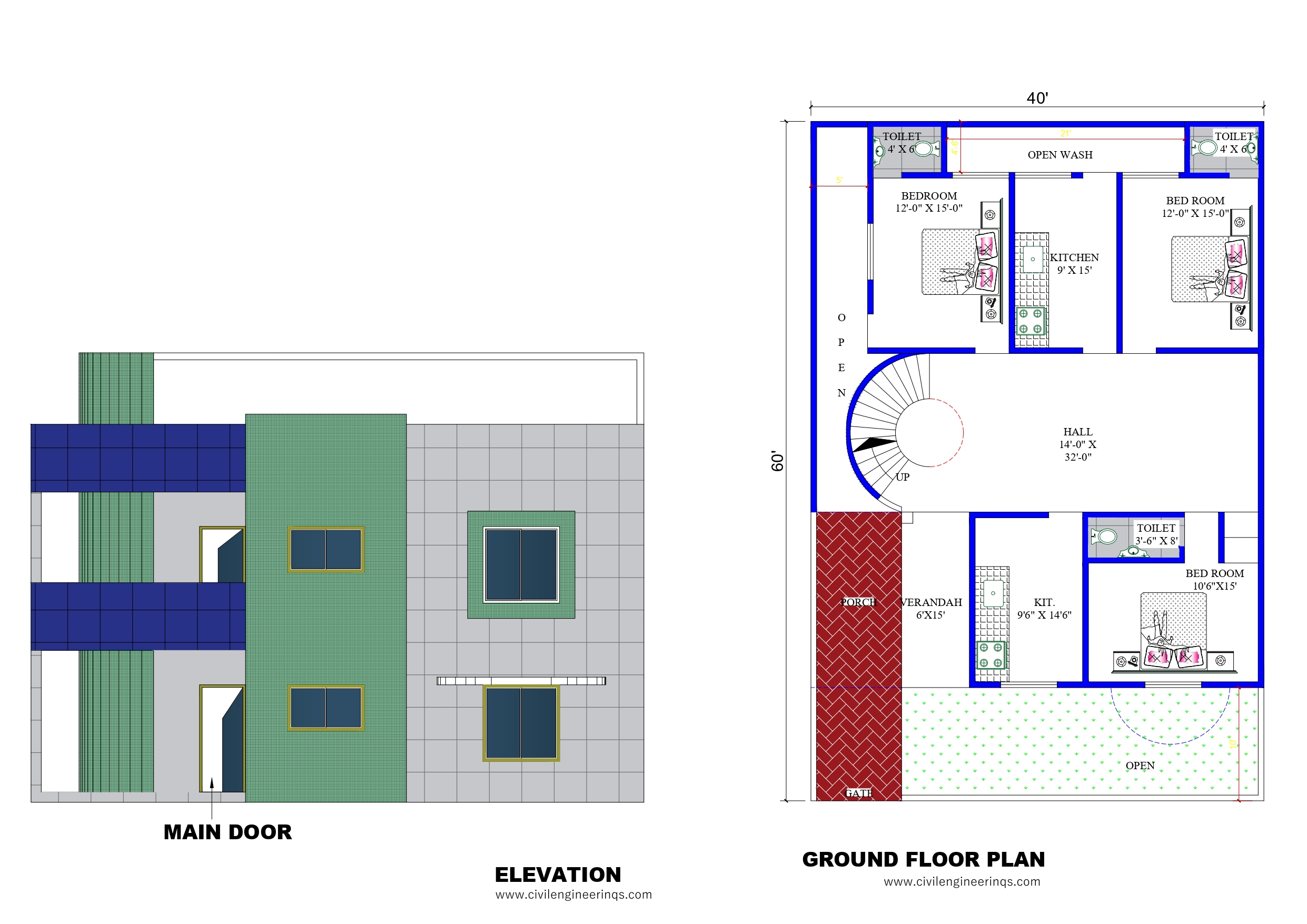

40 x 60 -Floor Plan with Elevation

Plot Size: 40′ x 60′ – 03 Bedroom House Design, 3BHK
Building Type: Ground Floor -Approximate 2400 sqft
Purpose: Ideal for Joint Family

  • Hall: 14’-0” x 32’-0” (spacious central living area)

  • Bedroom 1: 12’-0” x 15’-0” (with attached toilet 4’ x 6’)

  • Bedroom 2: 12’-0” x 15’-0” (with attached toilet 4’ x 6’)

  • Bedroom 3: 10’-6” x 15’ (with attached toilet 3’-6” x 8’)

  • Kitchen 1: 9’-0” x 15’-0”

  • Kitchen 2: 9’-6” x 14’-6”

  • Verandah: 6’ x 15’ (front entrance)

  • Open Wash Area at back side

  • Open Space: both front and side for ventilation

40 x 60 Floor Plan with Elevation AutoCAD & PDF Download

40 x 60 -Floor Plan with Elevation

Plot Size: 40′ x 60′ – 02 Bedroom House Design, 2BHK
Building Type: Ground Floor -Approximate 2400 sqft
Purpose: Ideal for Joint Family

Ground Floor Features

Bedroom 1 located at rear side with the Size: 14′-0″ x 14′-0″ & Attached Toilet: 7′-0″ x 7′-0″ also attached Dressing Room: 7′-0″ x 6′-7″

Bedroom 2 located at Front side with the Size: 13′-6″ x 17′-10″ & Attached Toilet: 7′-0″ x 7′-6″ also attached Dressing Room: 6′-1″ x 7′-6″

Guest Room located at Rear side  with the Size: 10′-6″ x 14′-0″

Living Hall & Dining located at center of the building easy access to all the rooms  with the Size: 18′-10″ x 15′-8″

Kitchen located at front elevation with the Size: 11′-0″ x 14′-0″ attached Store Room  with the Size: 7′-0″ x 7′-0″ also attached Wash Area  with the Size: 7′-0″ x 7′-0″

Front elevation area designed for park one car

40 x 70 Floor Plan with Elevation AutoCAD & PDF Download

40 x 70 -Floor Plan with Elevation

Plot Size: 40′ x 70′ – 04 Bedroom House Design, including GF & FF 4BHK floor plan,
Building Type: Ground Floor & First Floor
Purpose: Ideal for Joint Family

Ground Floor Feaatures

  • Bedroom 1 –Located in rear side with attached dressing & Toilet

  • Bedroom -2 Located in Front side with attached dressing & Toilet

  • Living Hall & Dining:  designed at centre of the house access to all area

  • Guest Room: perfect for hosting guests or formal meetings.

  • Kitchen: spacious kitched with attached store room also direct access to outside opn sapace

  • Porch:  Covered parking area with a pathway to the main entrance.

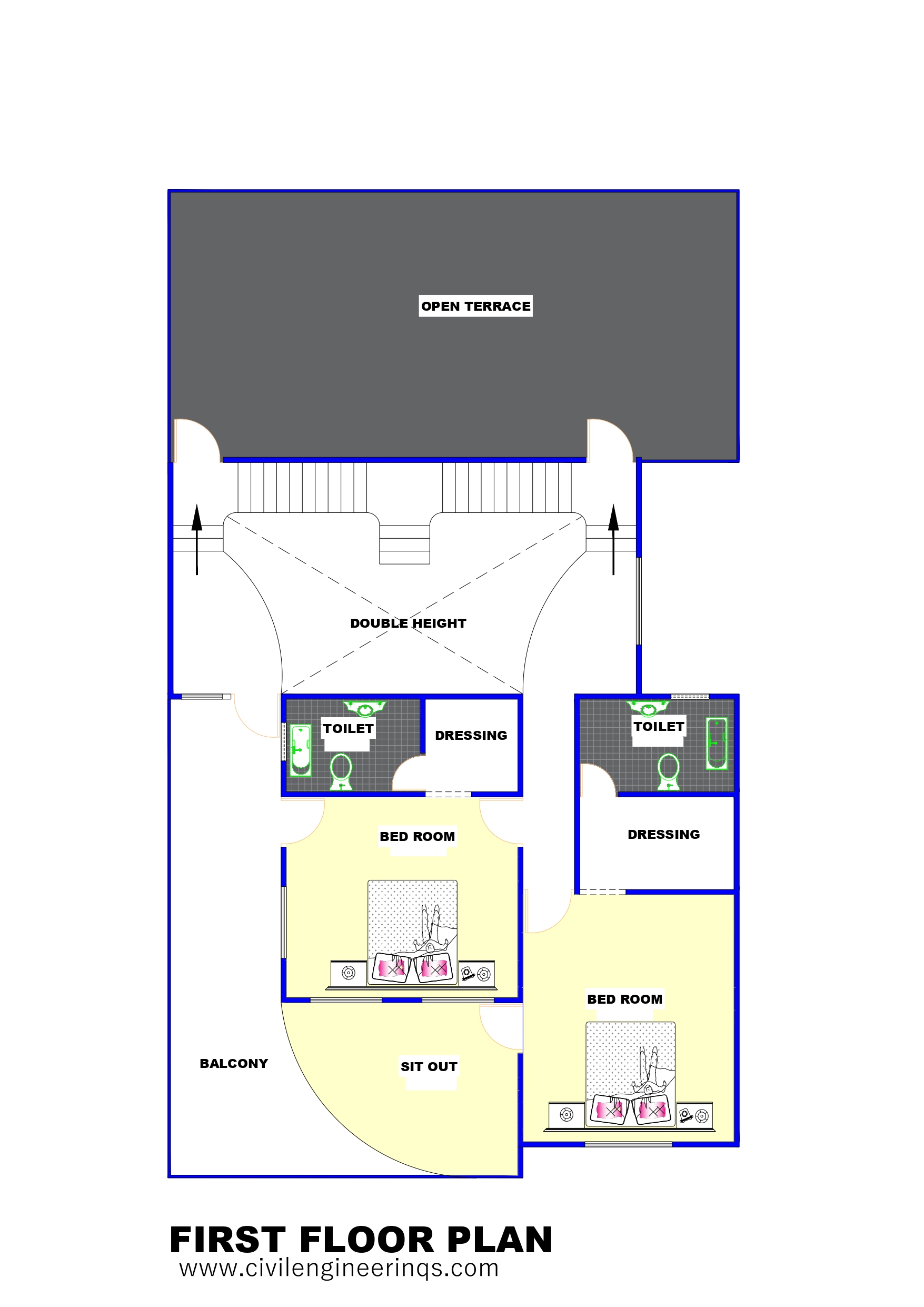

First Floor Feature

Bedroom 1 –Located in center of the house with attached dressing & Toilet

Bedroom -2 Located in Front side with attached dressing & Toilet

Balcony and sitout area designes in this first floor plan

40 x 80 -2BHK Floor Plan with Elevation AutoCAD & PDF Download

40 x 80 -2 BHK Floor Plan with Elevation

Plot Size: 40′ x 80′ – 02 Bedroom House Design 2BHK floor plan,
Building Type: Ground Floor with Guest Room Facility
Purpose: Ideal for Joint Family

40′ x 80′-2BHK House Floor plan

  • Bedroom 1 : Size in this plan 18’0″ x 13’0″ – A large and comfortable bedroom with attached dressing room  and toilet for privacy, Dress Room : Size in this plan 6’0″ x 8’0″ , Toilet  Size in this plan 9’0″ x 8’0″

  • Bedroom -2  Size in this plan 14’0″ x 17’4″ – with attached dress and toilet, Dressing Room  Size in this plan 6’8″ x 8’0″  & Toilet (Second Bedroom): Size in this plan 6’8″ x 9’0″ –

  • Living Hall & Dining: Size in this plan 19’2″ x 21’2″ – Centralized easy access to any room

  • Guest Room: Size in this plan 15’0″ x 20’0″ – A spacious room with bay windows, perfect for hosting guests or formal meetings.

  • Kitchen: Size in this plan 14’5″ x 13’0″ – Well-planned cooking space with attached access to the wash and store Room.

  • Common Toilet: Size in this plan 7’0″ x 4’0″

  • Porch: Size in this plan 18’0″ x 16’0″ – Covered parking area with a pathway to the main entrance.

21′ x 55′ – 2 BEDROOM HOUSE FLOOR PLAN AutoCAD & PDF Download

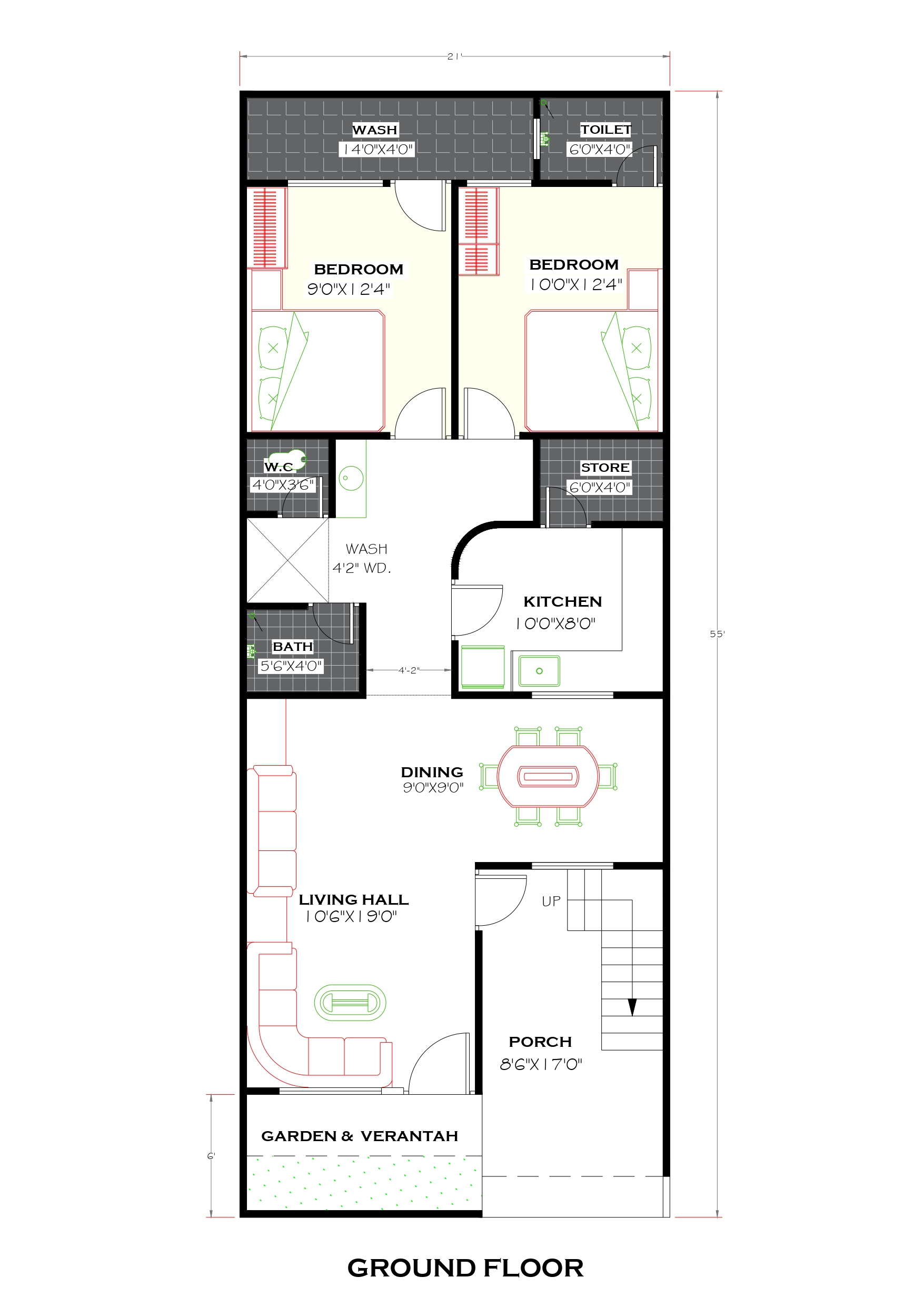

21′ x 55′ – 2 BEDROOM HOUSE FLOOR PLAN

Plot Size: 21’X 55′ – 02 Bedroom House Design 2BHK floor plan,
Building Type: Ground Floor
Purpose: Ideal for Single Family, Low Budget House plan

2 Bedroom House Floor Plan – Floor Details (21′ x 55′)

  • Bedroom 1 – Size: 10’0″ x 12’4″, Located at the back-right corner with attached Toilet (6’0″ x 4’0″), offering privacy and convenience

  • Bedroom 2– Size: 9’0″ x 12’4″, Located beside Bedroom 2, near common wash, bath, and W.C.

  • Living Hall – Size: 10’6″ x 19’0″, Positioned at the front, ideal for family gatherings and TV area

  • Dining Area – Size: 9’0″ x 9’0″, Centrally located between Living Hall and Kitchen, with seating space for six

  • Kitchen – Size: 10’0″ x 8’0″, Located on the right side, attached with Store Room – Size: 6’0″ x 4’0″

  • Bath (Common) – Size: 5’6″ x 4’0″ & W.C. (Common) – Size: 4’0″ x 3’6″ designed in this plan

  • Wash Area (Backside) – Size: 4’0″ x 4’0″, Located behind Bedroom 1

  • Porch – Size: 8’6″ x 17’0″, Located at the entrance with staircase access

  • Garden & Verandah – Positioned in front of Living Hall
