30 x 46 Floor Plan with Elevation AutoCAD & PDF Download

30 x 46 -Floor Plan with Elevation

Plot Size: 30′ x 46′ – 02 Bedroom House Design, 2BHK
Building Type: Ground Floor -Approximate 1380 sqft
Purpose: Ideal for Joint Family

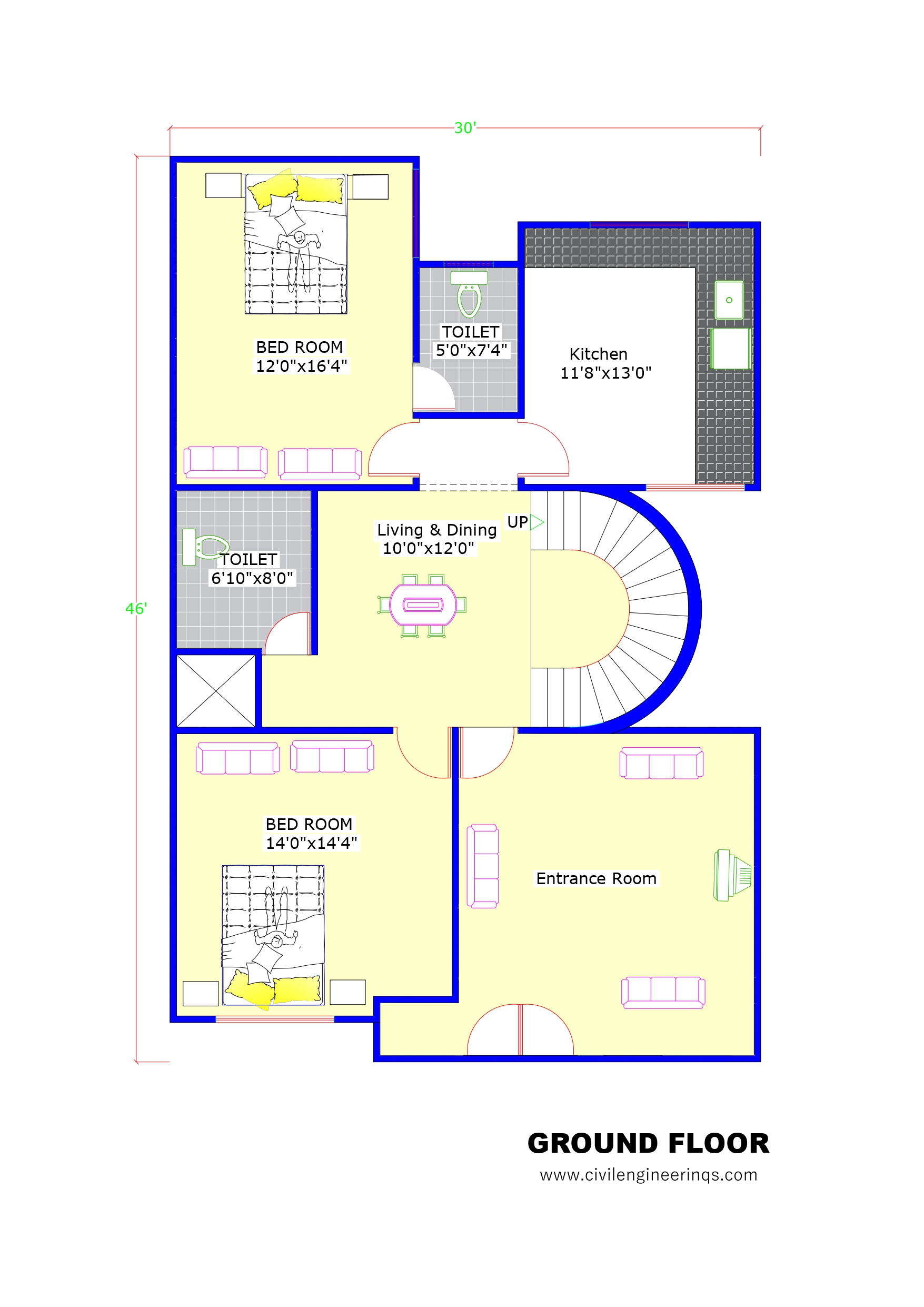

Ground Floor Features

  • Bedroom 1 located at rear-left side with the Size: 12′-0″ x 16′-4″ with Attached Toilet: 5′-0″ x 7′-4″

  • Bedroom 2 located at front-left side with the Size: 14′-0″ x 14′-0″

  • Living & Dining Room located at center with the Size: 10′-0″ x 12′-0″

  • Kitchen located at rear-right side with the Size: 11′-8″ x 13′-0″

  • Common Toilet located beside kitchen with the Size: 6′-0″ x 8′-0″

  • Entrance Room located at front-right side with spacious layout

  • Staircase provided near Living & Dining room for Roof access

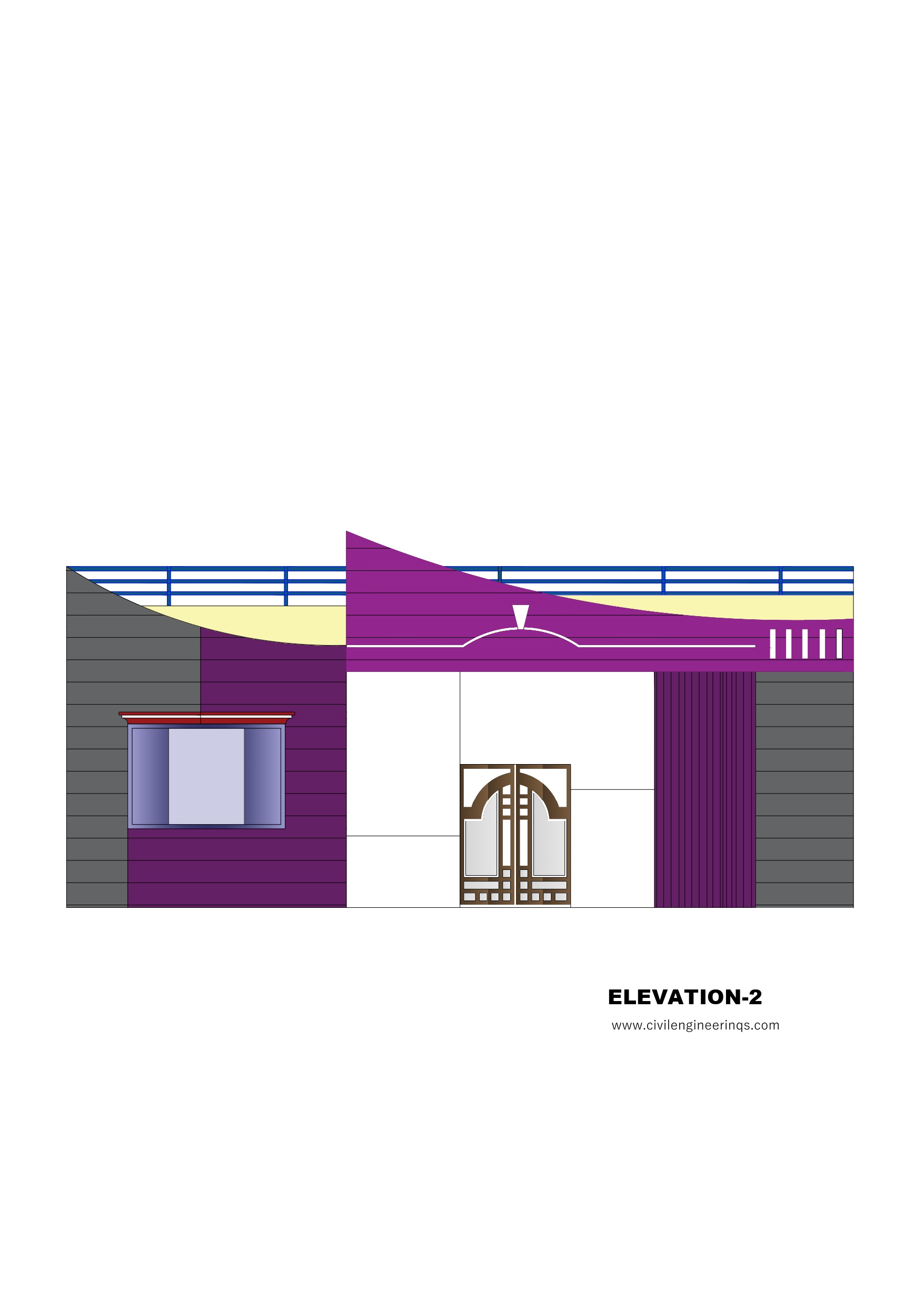

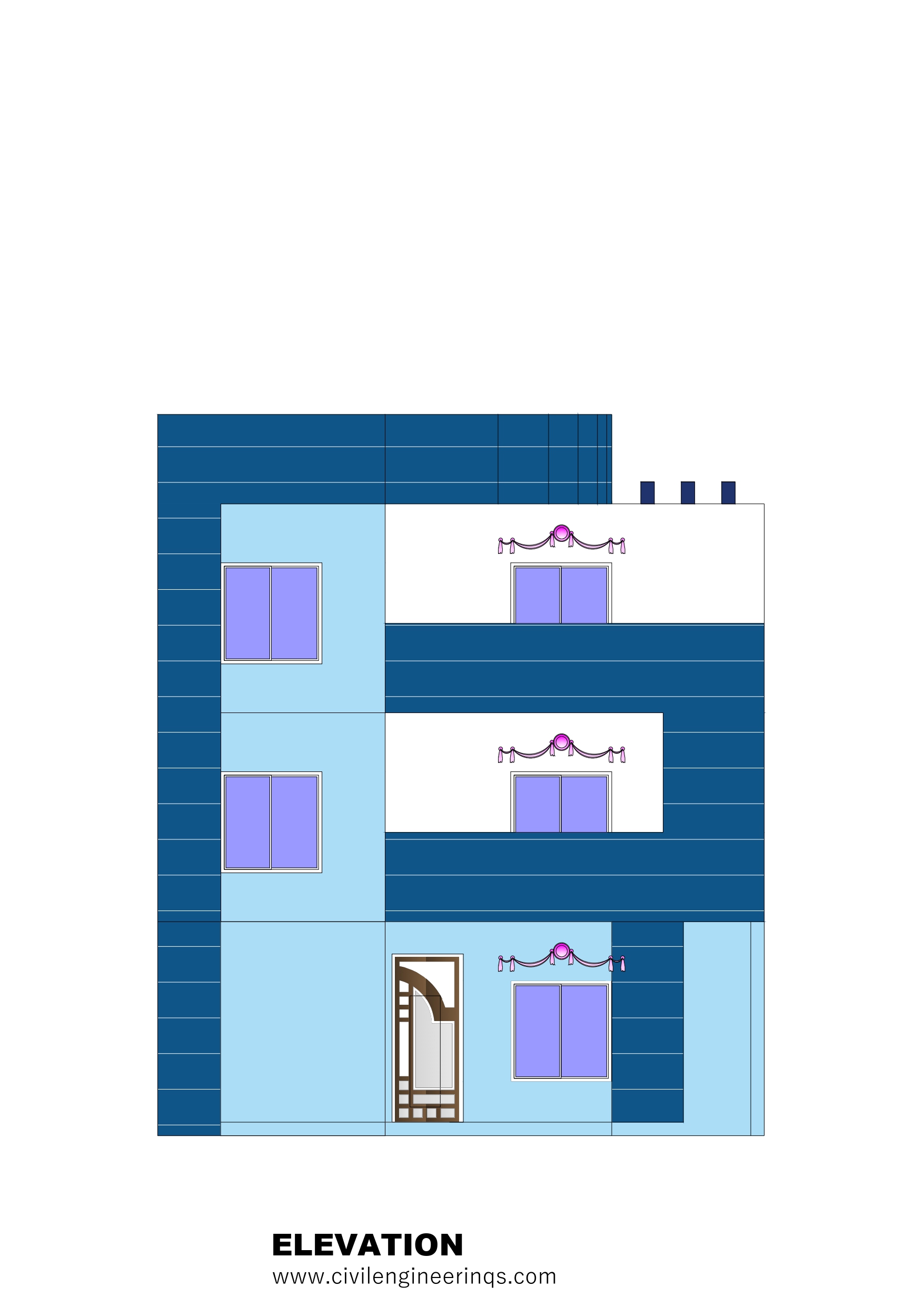

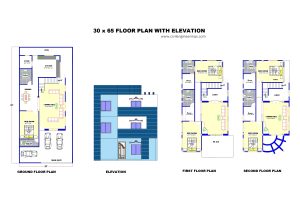

30 x 65 Floor Plan with Elevation AutoCAD & PDF Download

30 x 65 -Floor Plan with Elevation

Plot Size: 30′ x 65′ – 05 Bedroom House Design, 5BHK including GF-1BHK, FF & SF -2BHK
Building Type: Ground Floor & First Floor & Second Floor -Approximate 1950 sqft
Purpose: Ideal for Rental House

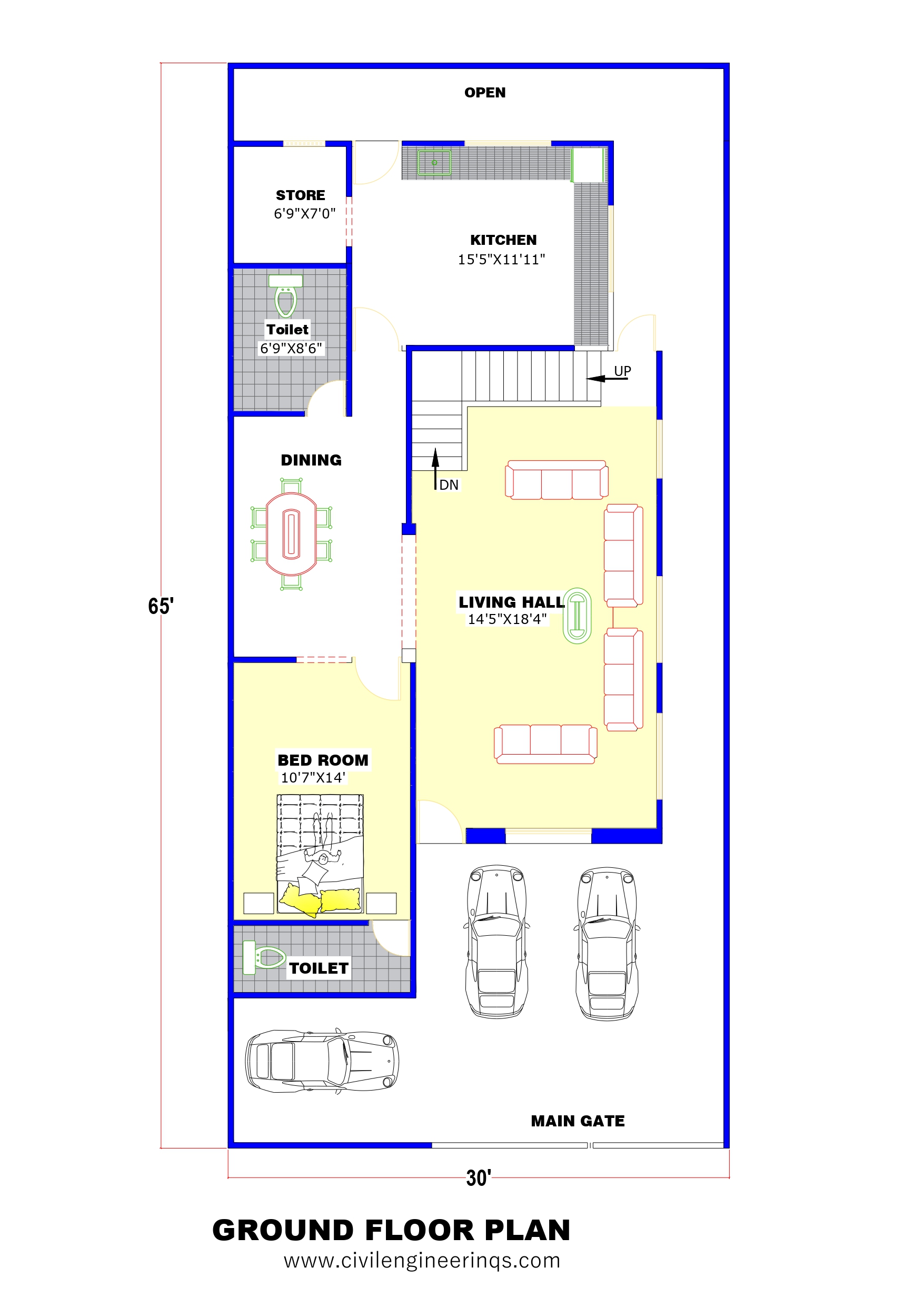

Ground Floor Features

  • Bedroom 1: 10’7″ x 14′ – Front-side bedroom with attached toilet.

  • Living Hall: 14’5″ x 18’4″ – Spacious hall with entry near the main gate.

  • Dining Area: Located adjacent to the bedroom and near the kitchen.

  • Kitchen: 15’5″ x 11’11″ – Rear-side kitchen with good ventilation and access to open area.

  • Store Room: 6’9″ x 7’0″ – Next to the kitchen.

  • Toilets: one common toilets with the size of  (6’9″ x 8’6″) .

  • Parking Space: For 2–3 cars inside the boundary.

  • Staircase: Centrally located for access to upper floors.





First Floor & Second Floor Features

  • Bedroom 1: 10’7″ x 16’9″ – Front-side with attached dressing (6’9″ x 8’0″) and toilet (6’9″ x 9’1″).

  • Bedroom 2: 15’5″ x 11’11″ – Rear-side with dress (6’9″ x 8’6″) and attached toilet.

  • Living Hall: 14’5″ x 18’4″ – Large hall connected to stairs and lobby.

  • Lobby: Centrally located for room access.

  • Balcony Area: Stylish semi-circular front balcony with sit-out .

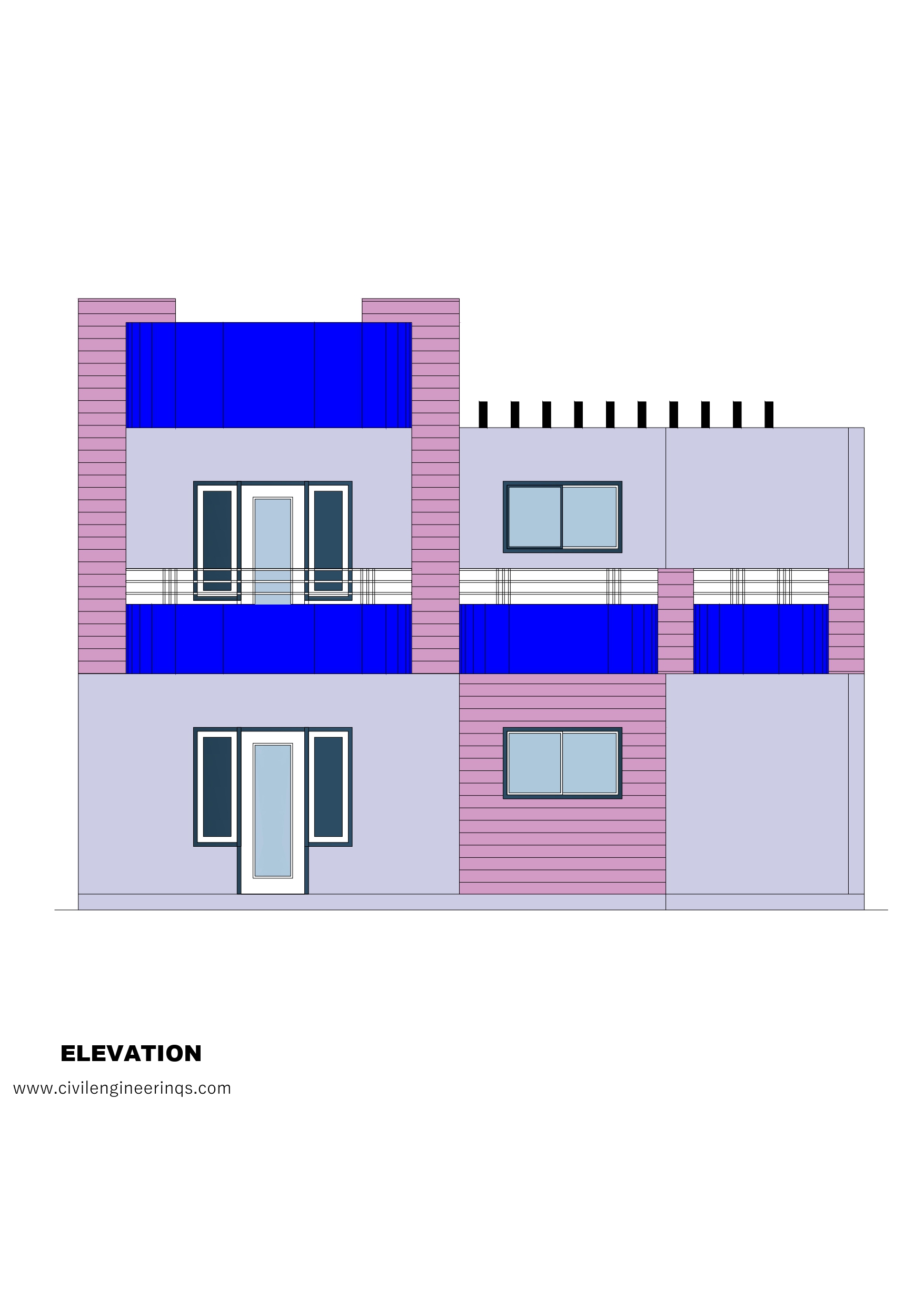

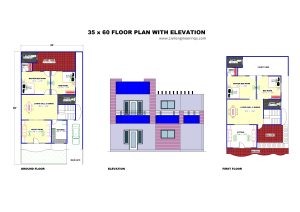

35 x 60 Floor Plan with Elevation AutoCAD & PDF Download

35 x 60 -Floor Plan with Elevation

Plot Size: 35′ x 60′ – 04 Bedroom House Design, 5BHK including GF-2BHK & FF-2BHK
Building Type: Ground Floor & First Floor -Approximate 2100 sqft
Purpose: Ideal for Joint Family

Ground Floor Features

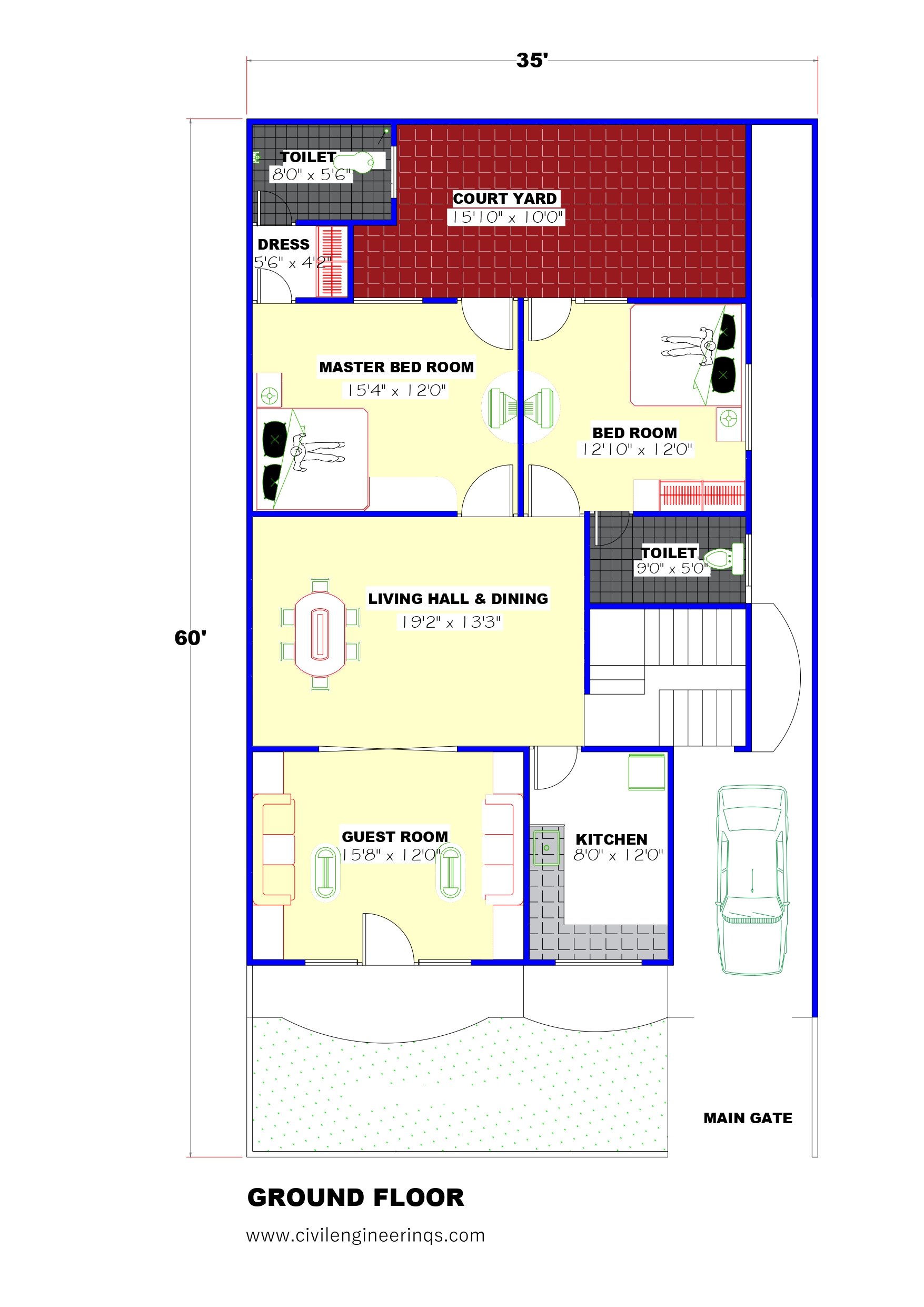

  • Master Bed Room located at left rear side with the Size: 15′-4″ x 12′-0″ & attached Toilet: 8′-0″ x 5′-6″ also attached Dressing Room: 5′-6″ x 4′-2″

  • Bed Room located at right rear side with the Size: 12′-10″ x 12′-0″ & adjacent Common Toilet: 9′-0″ x 5′-0″

  • Guest Room located at front left side with the Size: 15′-8″ x 12′-0″

  • Living Hall & Dining located at center with the Size: 19′-2″ x 13′-3″ for easy access to all rooms

  • Kitchen located at front right side near main entrance with the Size: 8′-0″ x 12′-0″

  • Court Yard Size: 15′-0″ x 10′-0″ for ventilation and natural light

  • Main Gate with direct entry to car parking area and access to living room

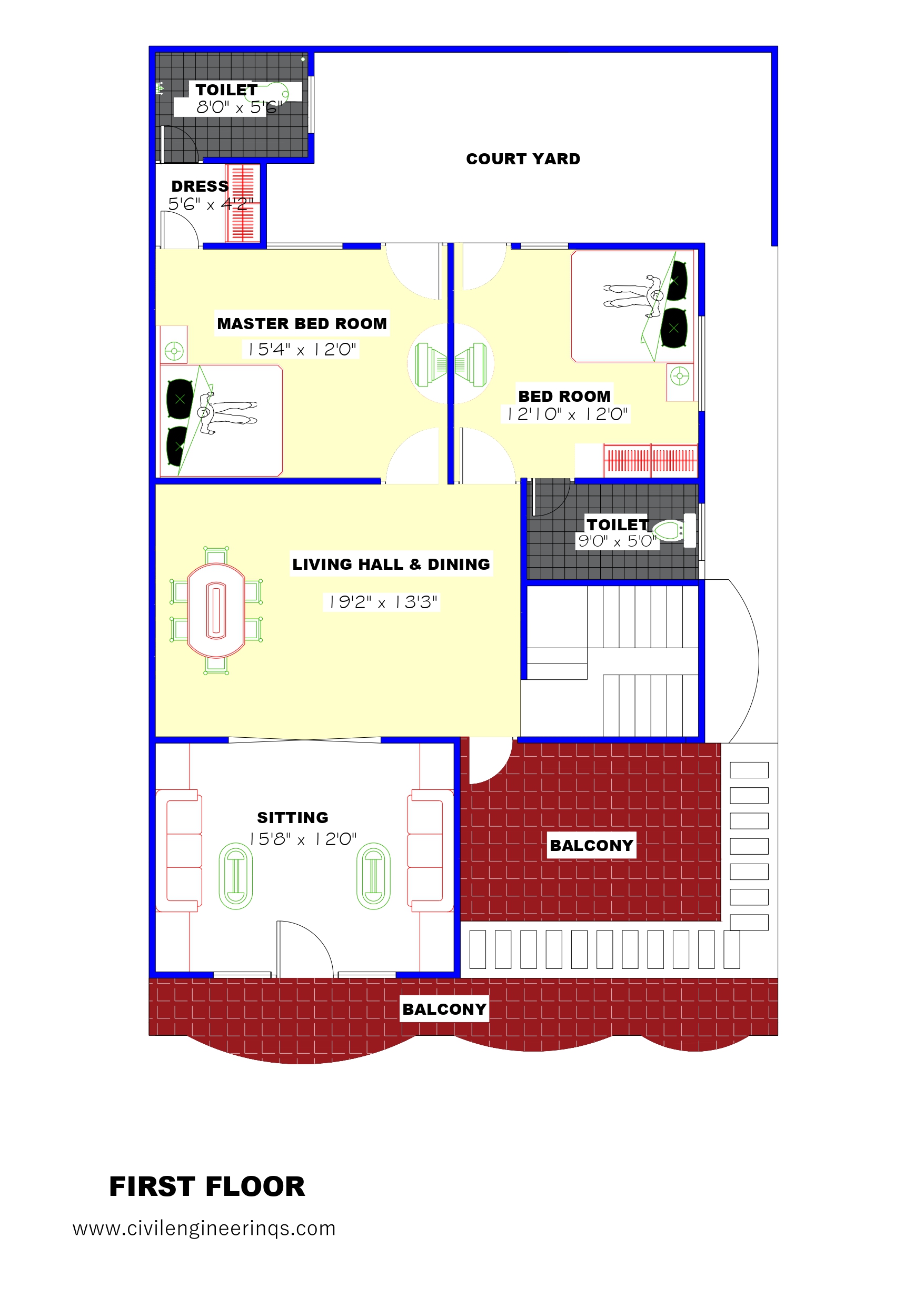

First Floor Features

  • Master Bed Room located at left rear side with the Size: 15′-4″ x 12′-0″ & attached Toilet: 8′-0″ x 5′-6″ also attached Dressing Room: 5′-6″ x 4′-2″

  • Bed Room located at right rear side with the Size: 12′-10″ x 12′-0″ & adjacent Common Toilet: 9′-0″ x 5′-0″

  • Guest Room located at front left side with the Size: 15′-8″ x 12′-0″

  • Living Hall & Dining located at center with the Size: 19′-2″ x 13′-3″ for easy access to all rooms

  • Balcony / Sit Out can be access from living Hall & Sit out area

40 x 65 Floor Plan with Elevation AutoCAD & PDF Download

40 x 65 -Floor Plan with Elevation

Plot Size: 40′ x 65′ – 05 Bedroom House Design, including GF & FF 5BHK floor plan,
Total Plot Area: 2600 Sq.ft approx.
Building Type: Ground Floor & First Floor
Purpose: Ideal for Joint Family & rental house

Ground Floor Features – 2Bedroom

Bedroom -1 – Size 14’4” x 16’0 ”  attached with dressing (9′ x 5’1”) & Toilet (9’0” x 7’0” )

Bedroom -2 – Size 12’4” x 15’0” with  attached Toilet (8’0” x 4’0” )

Large Living + Dining Room size of (22’5″x14’0″) Spacious  & Centrally located

Kitchen (14’0″x16’0″) with Attached Wash Area (8’0″x 6’0″)

Guest Room (13’0″x17’0″) Located in Front entrance

Common Toilet  (7’0″x 7’0″)

Porch (12’0″x18’6″) with car park facility

First Floor Feature – 3Bedroom

Bedroom -1 – Size 14’4” x 16’0 ”  attached with dressing (9′ x 5’1”) & Toilet (9’0” x 7’0” )

Bedroom -2 – Size 14′ x 16′ with  attached Toilet (8’0” x 6’0” )

Bedroom -3 – Size 13’0” x 17’0” attached with dressing (6′ x 10′) & Toilet (6’0” x 10’0” )

Large Living  size of (23’6″x14’0″) Spacious  & Centrally located easy access to all the rooms

Sit out Area Size 12′ x 10′ also access to balcony

40 x 70 Floor Plan with Elevation AutoCAD & PDF Download

40 x 70 -Floor Plan with Elevation

Plot Size: 40′ x 70′ – 04 Bedroom House Design, including GF & FF 4BHK floor plan,
Building Type: Ground Floor & First Floor
Purpose: Ideal for Joint Family

Ground Floor Feaatures

  • Bedroom 1 –Located in rear side with attached dressing & Toilet

  • Bedroom -2 Located in Front side with attached dressing & Toilet

  • Living Hall & Dining:  designed at centre of the house access to all area

  • Guest Room: perfect for hosting guests or formal meetings.

  • Kitchen: spacious kitched with attached store room also direct access to outside opn sapace

  • Porch:  Covered parking area with a pathway to the main entrance.

First Floor Feature

Bedroom 1 –Located in center of the house with attached dressing & Toilet

Bedroom -2 Located in Front side with attached dressing & Toilet

Balcony and sitout area designes in this first floor plan

40 x 80 -2BHK Floor Plan with Elevation AutoCAD & PDF Download

40 x 80 -2 BHK Floor Plan with Elevation

Plot Size: 40′ x 80′ – 02 Bedroom House Design 2BHK floor plan,
Building Type: Ground Floor with Guest Room Facility
Purpose: Ideal for Joint Family

40′ x 80′-2BHK House Floor plan

  • Bedroom 1 : Size in this plan 18’0″ x 13’0″ – A large and comfortable bedroom with attached dressing room  and toilet for privacy, Dress Room : Size in this plan 6’0″ x 8’0″ , Toilet  Size in this plan 9’0″ x 8’0″

  • Bedroom -2  Size in this plan 14’0″ x 17’4″ – with attached dress and toilet, Dressing Room  Size in this plan 6’8″ x 8’0″  & Toilet (Second Bedroom): Size in this plan 6’8″ x 9’0″ –

  • Living Hall & Dining: Size in this plan 19’2″ x 21’2″ – Centralized easy access to any room

  • Guest Room: Size in this plan 15’0″ x 20’0″ – A spacious room with bay windows, perfect for hosting guests or formal meetings.

  • Kitchen: Size in this plan 14’5″ x 13’0″ – Well-planned cooking space with attached access to the wash and store Room.

  • Common Toilet: Size in this plan 7’0″ x 4’0″

  • Porch: Size in this plan 18’0″ x 16’0″ – Covered parking area with a pathway to the main entrance.

50×30 House Plan with Elevation | 1BHK Ground Floor + 3BHK First Floor with Elevation AutoCAD & PDF Download

50 x 30 – Floor Plan with Elevation

Plot Size: 50′ x 30′ – Ground Floor -1 Bedroom (1BHK) & First Floor 3 Bedroom (3BHK)
Building Type: Ground Floor & First Floor
Purpose: Ideal for Joint Family, Budget Floor plan

GROUND FLOOR FEATURES

  • Bedroom 1 (Back-Right Corner) – Size: 13’8″ x 13’0″, with an attached toilet size of 5′ x 8′ 8”

  • Living Hall & Dining – Spaciously placed in Entrance of the house, size of (19’0” x 20′ 0”

  • Kitchen – (Back-left Corner) – Size: 10’0″ x 16’4”

  • Common Toilet – Size: 7’0″ x 4’0″, For other common usages

  • Porch Designed with Carparking



FIRST FLOOR FEATURES

  • Bedroom 1 (Back-Right Corner) – Size: 13’8″ x 13’0″, with an attached toilet size of 7′ x 4’4”
  • Bedroom 2 (Back-Left  Corner) – Size: 10’0″ x 16’4”, with an attached toilet size of 5′ x 8′ 8”
  •  Bedroom 3 – Master Bedroom (Frond-Right Corner) – Size: 19′ x 13’4″, with an attached toilet size of 10′ x 4′ 8” with direct access to Sit out Area
