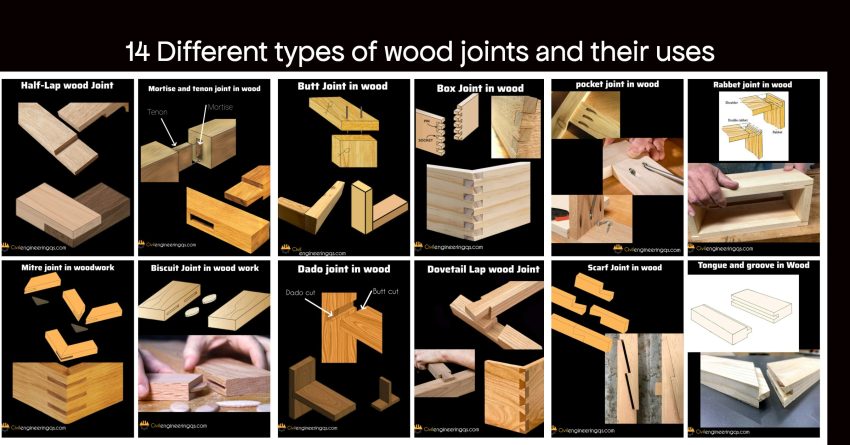

This article provides a basic detailed overview of various woodworking joints, focusing on their unique characteristics, benefits, and practical applications. Each type of joint have a specific purpose, depending on the project at hand, ranging from simple to complex connections.
The different types of joining methods used in woodworking include as follows
- Butt Joint in Woodwork
- Mitered Joint in Woodwork
- Box Joint in Woodwork
- Dovetail Lap Joint in Woodwork
- Biscuit Joint in Woodwork
- Tongue and Groove Joint in Woodwork
- Pocket Joint in Woodwork
- Scarf Joint in Woodwork
- Rabbet Joint in Woodwork
- Mortise and Tenon Joint in Woodwork
- Half Lap Joint in Woodwork
- Dado Joint in Woodwork
- Bridle Joint in Woodwork
- Dowel Joint in Woodwork

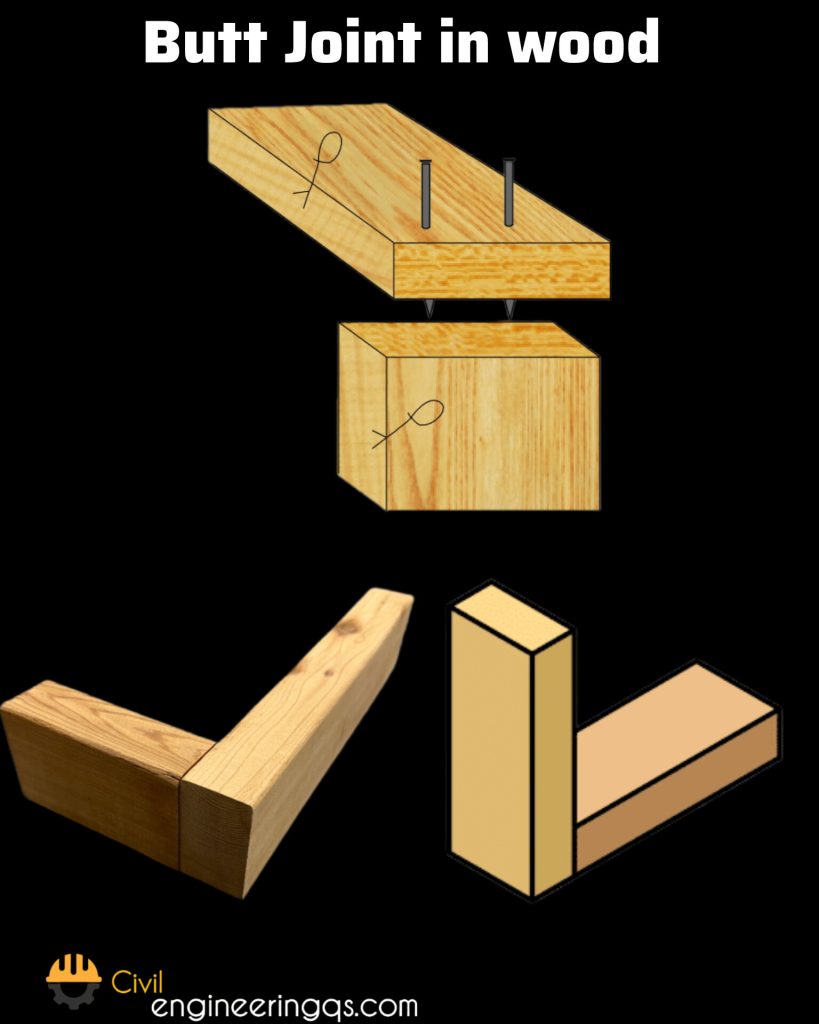

01. Butt joint in wood work
A butt joint is a basic type of joint, it is a simple way to join two pieces of wood. The ends of the wood are placed together without any special cuts or shapes.
In this type of joints are mostly used framing works for the construction and other applications that utilize additional fasteners for strength.

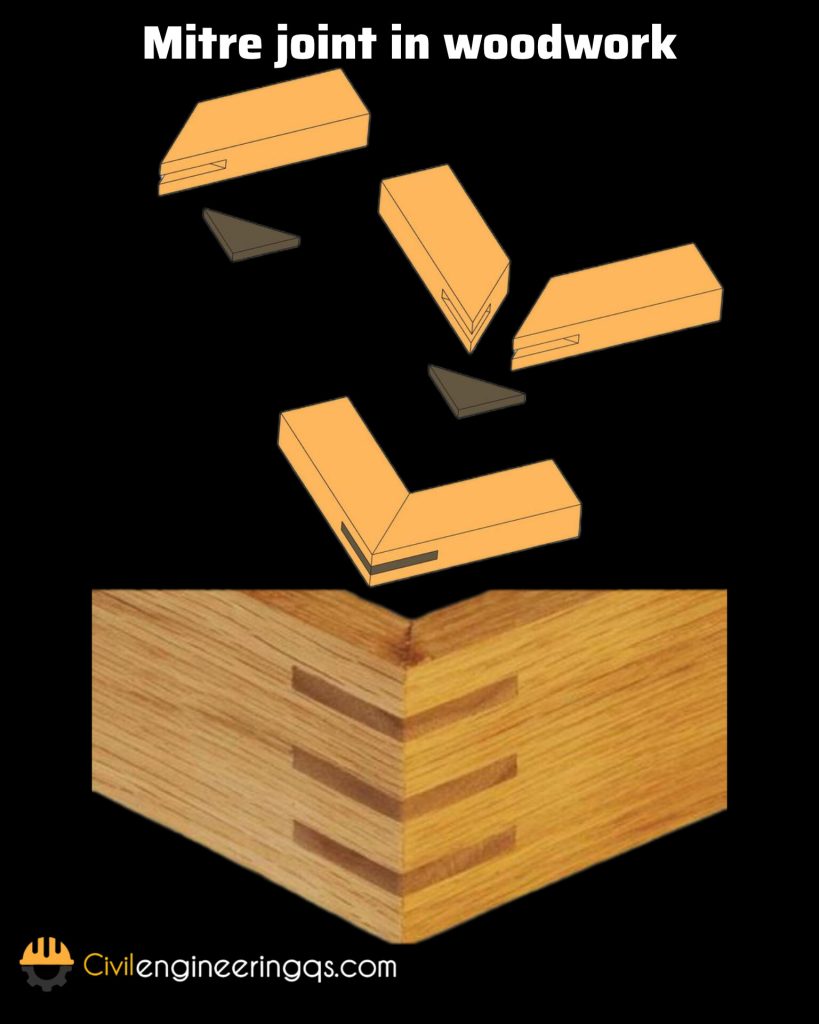

02. Â Mitered joint in wood work
A Miter joint is similar to butt joint, in this type of joints two pieces of wood are cut at an 45 degree angle, and joined together to form a corner.
Usually screw or glue is used in joints, Miter joints are very common in picture frames and boxes, as they create a neat, corner-less appearance

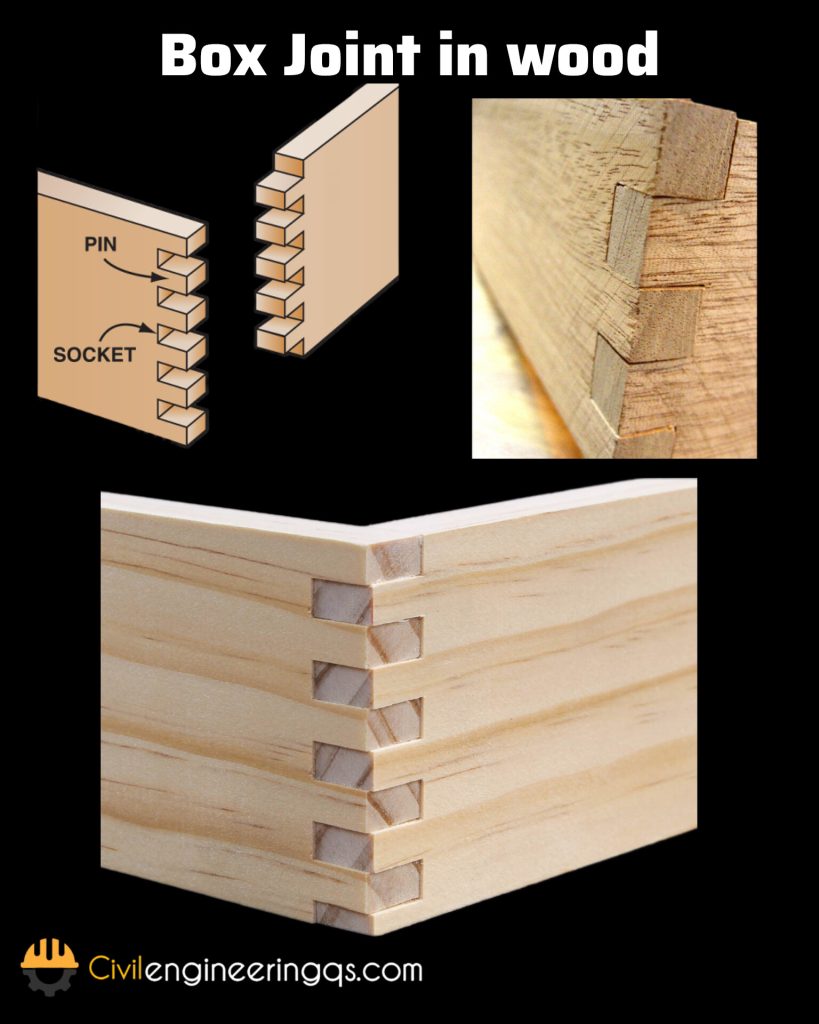

03. Box joint in wood work
A Box Joint is also called as finger joint, in this type of woodworking joint made by cutting a series of interlocking rectangular notches into two pieces of wood. in this notches are called as fingers.
Glue is mostly used for joints, box joints strong and visually appealing connection between two pieces of wood. in this type of joint mostly used to make Boxes, drawers and capinets

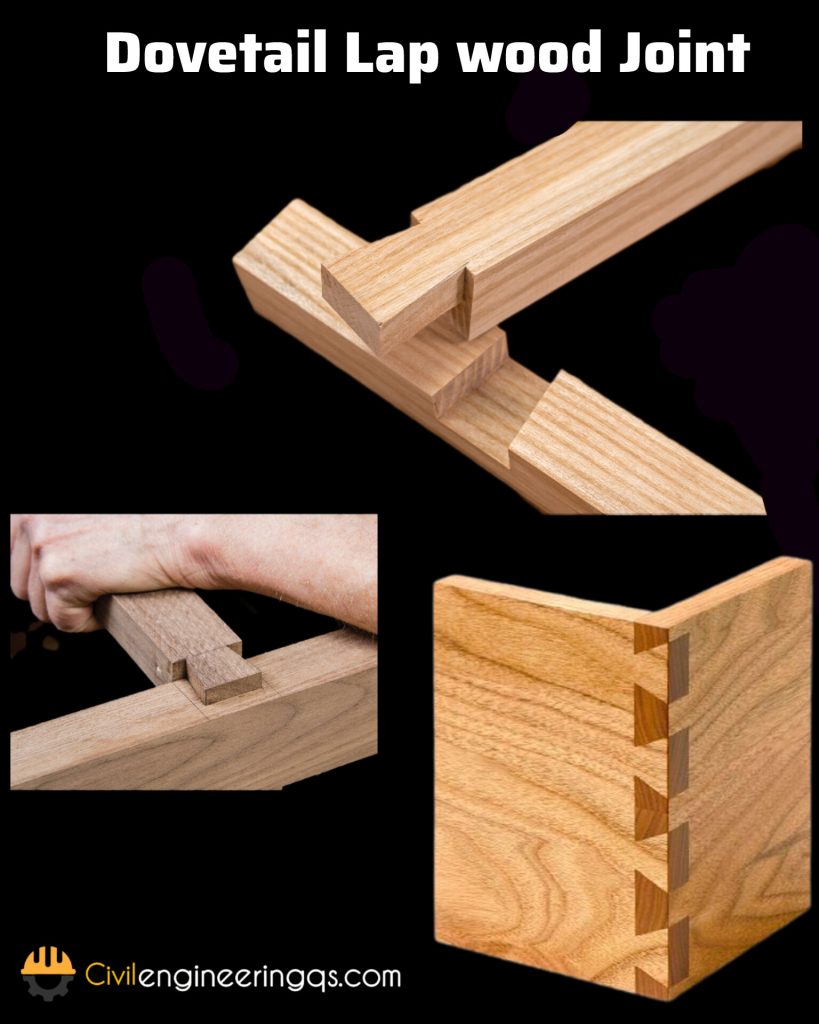

04. Dovetail lap joint in wood work
A Dovetail lap joint is
Dovetail joints are little bit similar to box joint, but main difference is the fingers (notches) are cut into dovetail shape, in this type of joints are more complex and self-locking iteration of a finger joint that utilizes tapered notches with corresponding tenons that lace together.
Glue is used in joint , in this type of joint does not require screw or fasters in joints, This joint is a best option for general furniture building, drawers, and boxes requiring above-average strength.

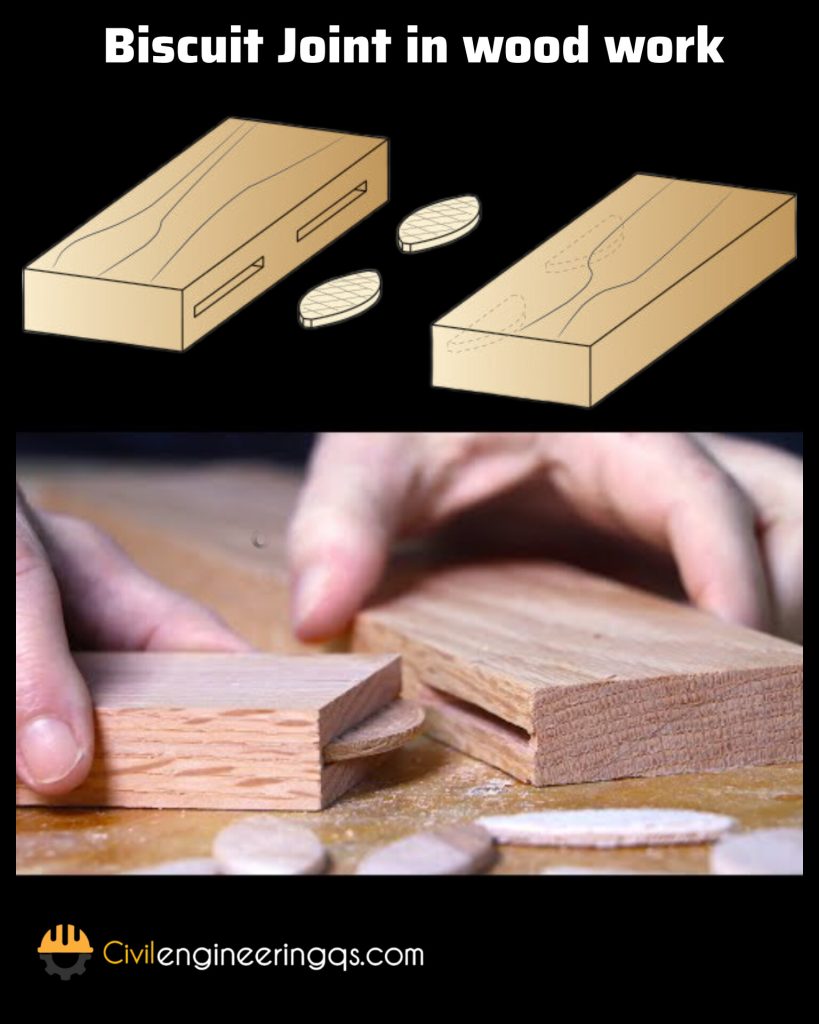

05. Biscuit joint in wood work
A Biscuit joint oval-shaped pieces of compressed wood, called biscuits, to join two pieces of wood together. in this type joint oval shaped holes creates both wooden pieces and oval-shaped pieces of compressed wood called biscuit used for connection
The two pieces of wood are clamped together, allowing the glue to dry and the biscuits to swell, creating a strong bond.in this type of joint mostly used in Cabinetry, Tabletops and Shelving making.

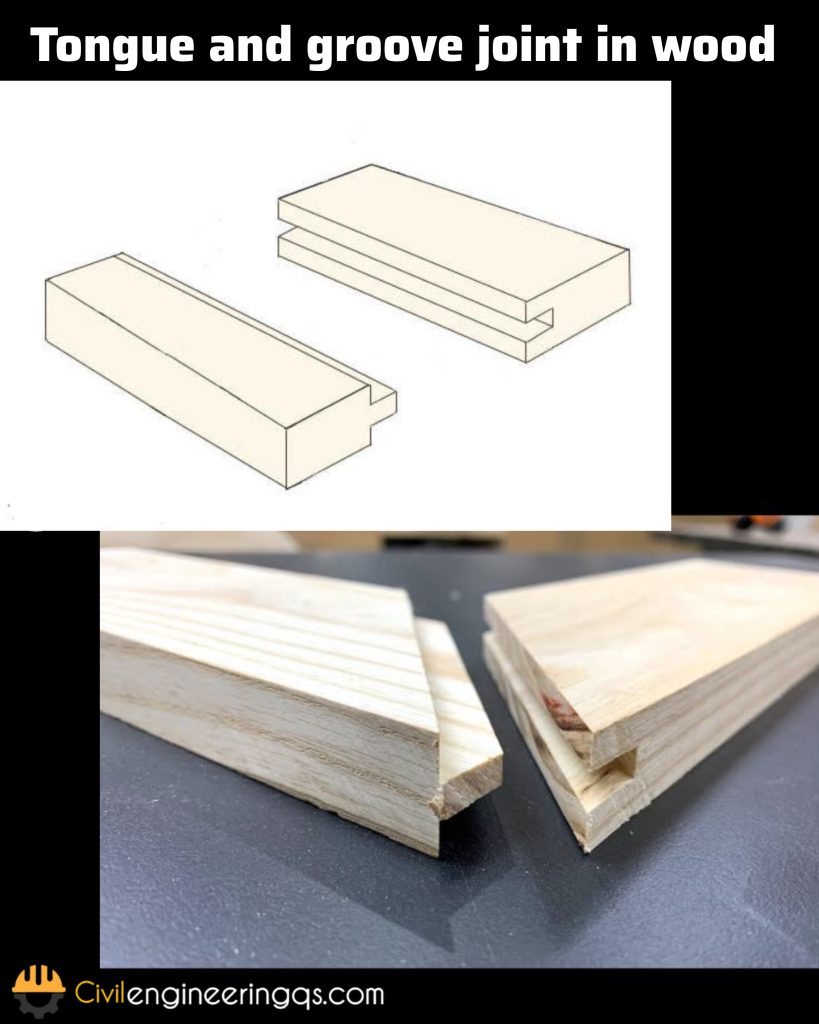

06. Tongue and groove joint in wood work
A Tongue and groove joint in wood work in this method one piece of wood made into a “tongue” another piece of wood made into groove, The two pieces lock tightly together mostly glue or nails are used for connection
In this type of joints has medium strength and it is commonly used for connecting panels or boards

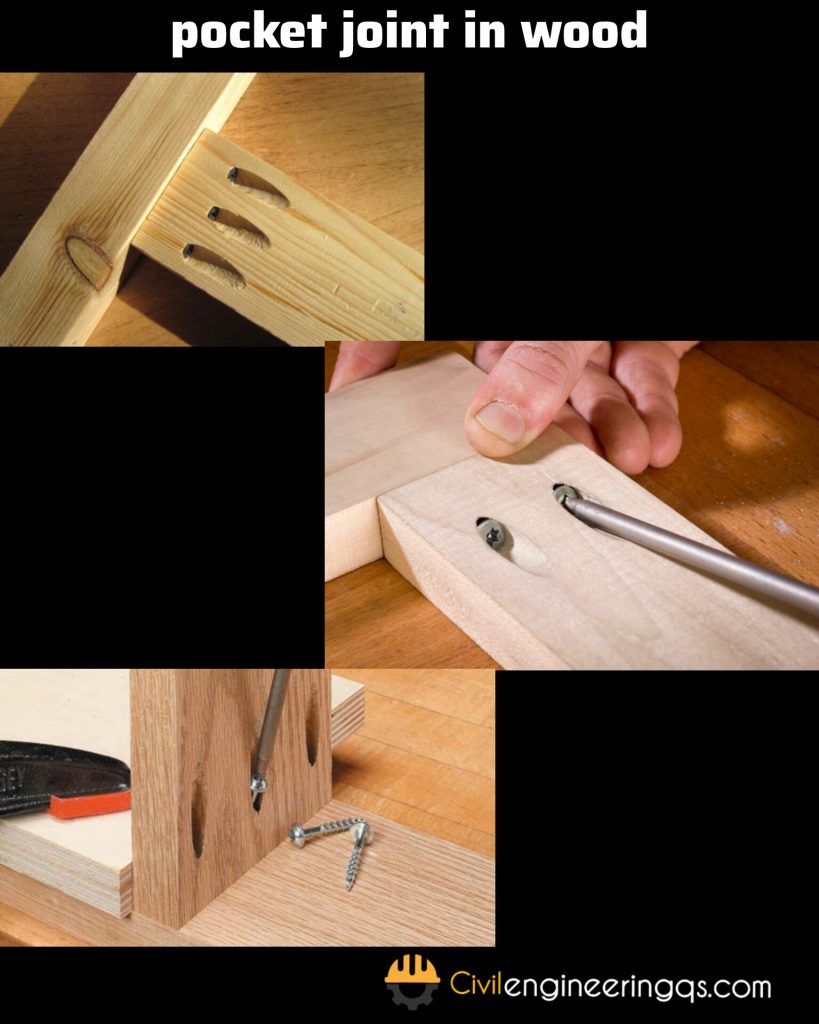

07. Pocket joint in wood work
A pocket joint is one of strong and efficient wood joining method, in this method drilling an angled hole, known as a pocket hole, into one piece of wood and then joining it to another piece using a specialized screw or nails.
In this method of joint is easy to assemble, it is Useful for joining boards in furniture making, cabinetry, and framing projects.

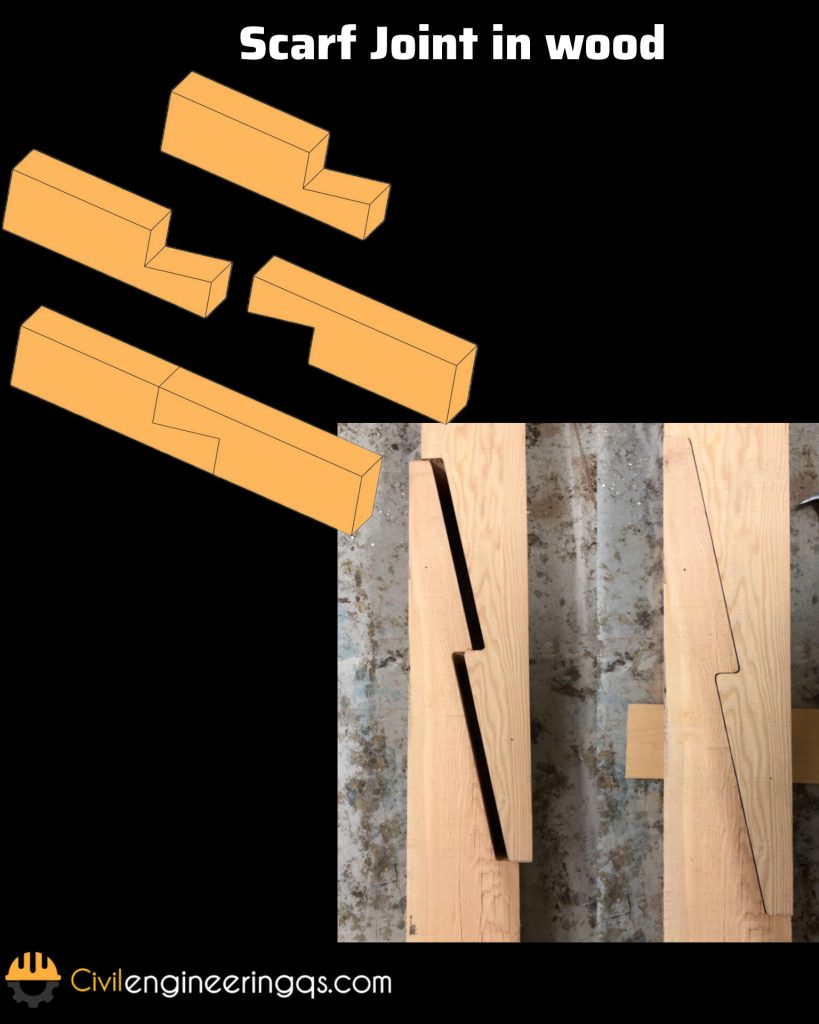

08. Scarf joint in wood work
A scarf joint is a woodworking method used to join two pieces of wood end-to-end, creating a continuous length. This joint is particularly useful for extending the length of wooden beams, moldings, or boards when a single piece of sufficient length isn’t available.
The overlapping area is used glue, secured with screws, nails for connection, When the work is done properly, the joint is almost invisible and blends in well.

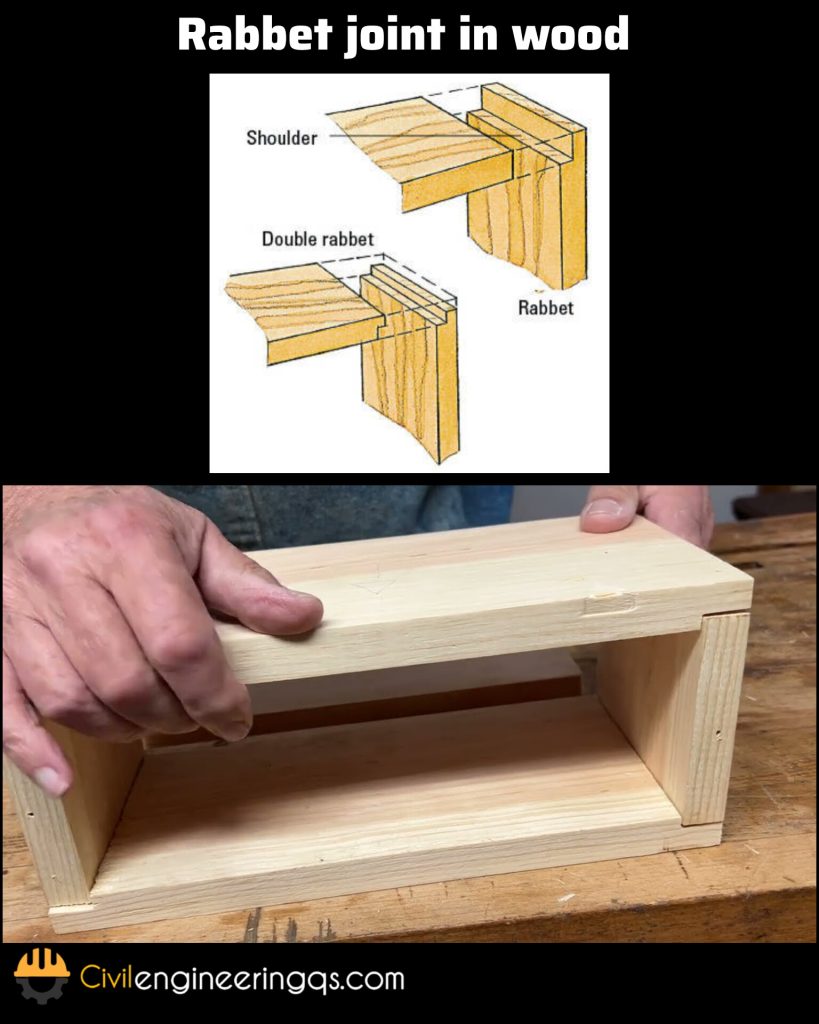

09. Rabbet joint in wood work
A Rabbet joint there are two types single rabbet joint & Double rabbet joint
Single Rabbet Joint, an L-shaped cut is made on one wooden piece. The second piece is left uncut and fits into the L-shaped recess.
Double Rabbet Joint, an L-shaped cut is made on both wooden pieces to interlock and create a tighter fit.
Mostly this type is used to make Cabinetry, Picture Frames, wooden boxes and Bookcases and Shelves , glue or screw nails are used for connect the both wooden pieces.

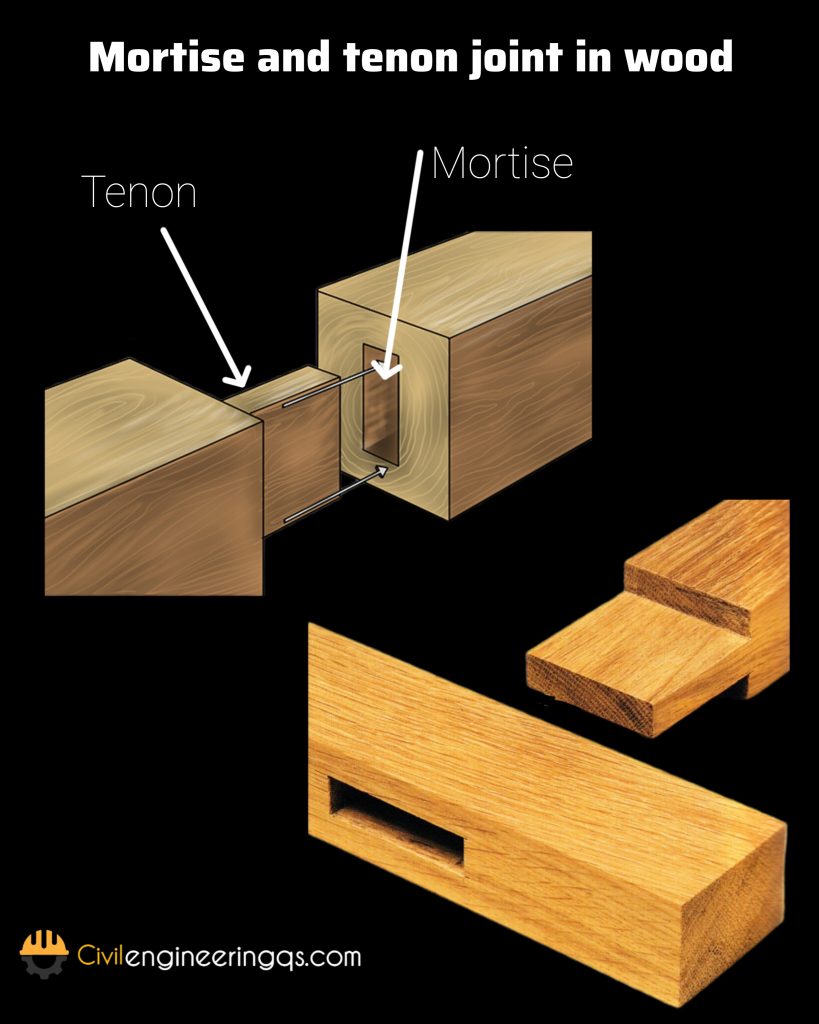

10. Mortise and Tenon joint in wood work
A Mortise and Tenon joint in this method most oldest and traditional method, it’s widely used in carpentry works, also its one of the strongest joint. In this method preparing a rectangular or square hole cut into one piece of wood.  Which is called as mortise and other piece of wood with a Tenon (a protruding tongue) both of mortise and Tenon connect together using glue or dowel or other required materials.
In this method joint mostly used in Door, window Frames, Architectural Joinery works, bed frames and table legs

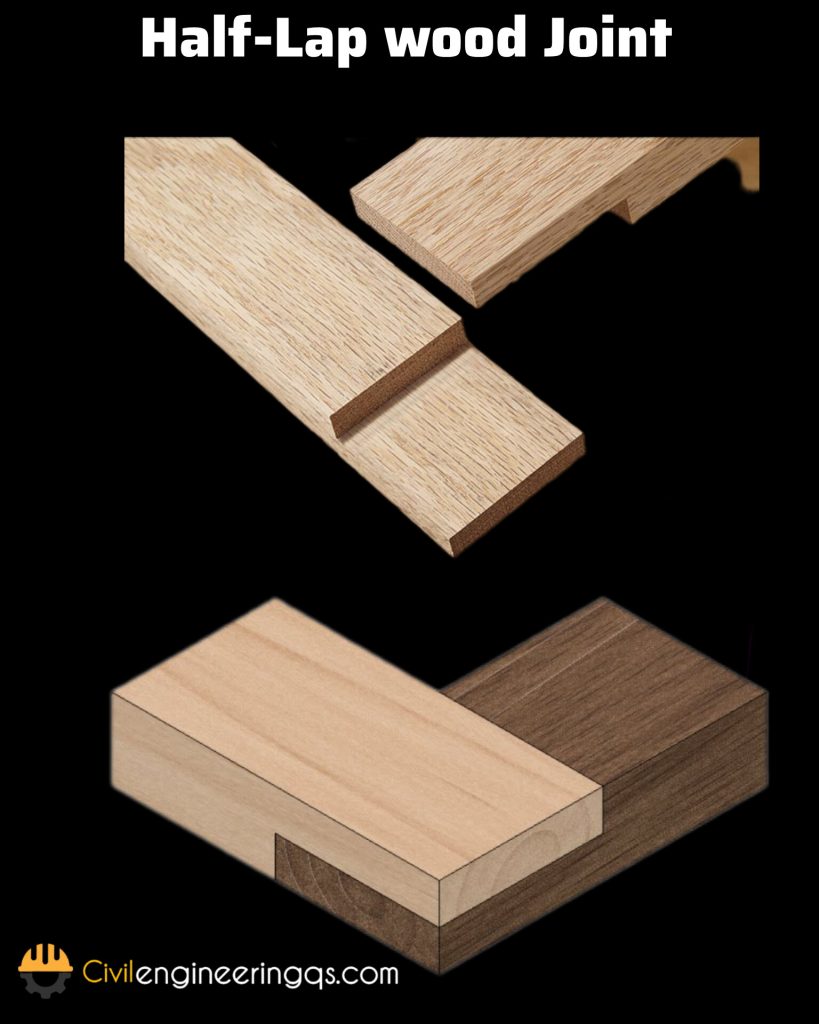

11. Half lap joint in wood work
The half lap joint is one of the simple and commonly used woodworking joint method. Each piece of wood has material removed (half the thickness) at the area of overlap. when joined, the combined thickness is equal to the original thickness of one piece of wood. This ensures the two pieces fit together flush, creating a strong and visually clean connection.
To strengthen the joint, reinforce it with glue or fasteners, this joint is used in building framing, furniture building and decorative works

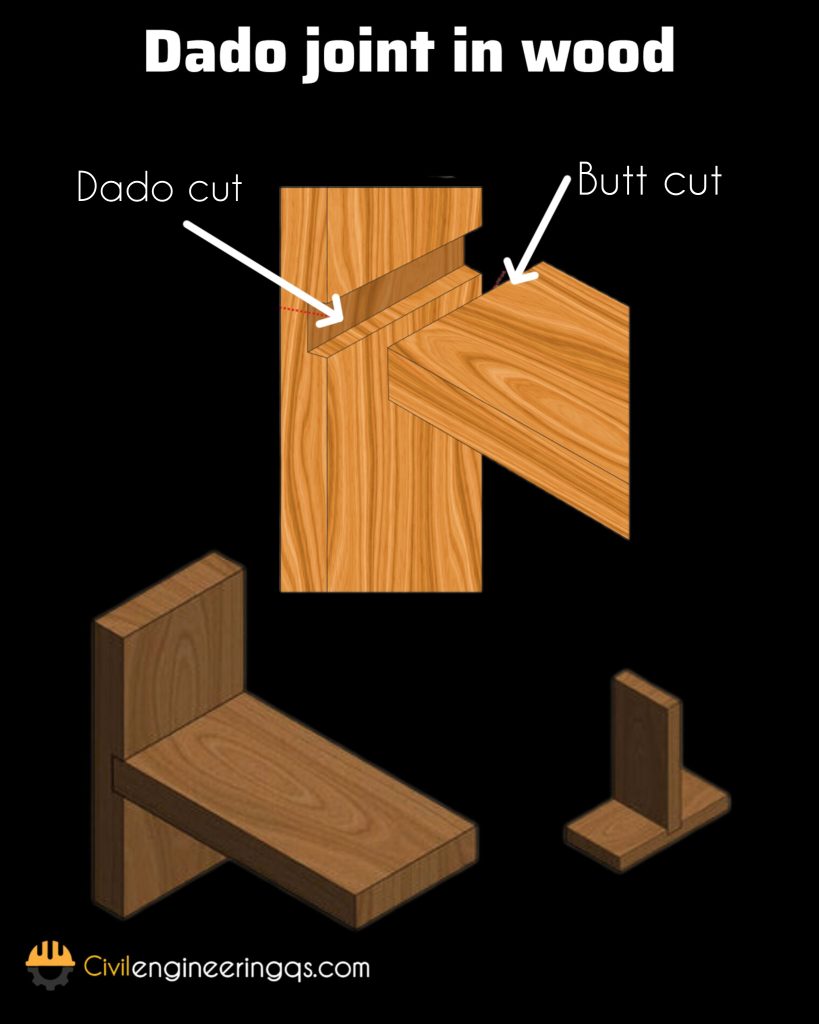

12. Dado joint in wood work
The dado joint involves cutting a rectangular-shaped groove into one piece of wood, with the thickness of the groove matching the thickness of the second piece of wood that fits into it. To secure the joint, nails, glue, or screws are commonly used, enhancing the joint’s strength.
Mostly in this method used in vertical joints , This method is especially useful for projects requiring clean and flush connections, such as shelves, partitions, and cabinetry.

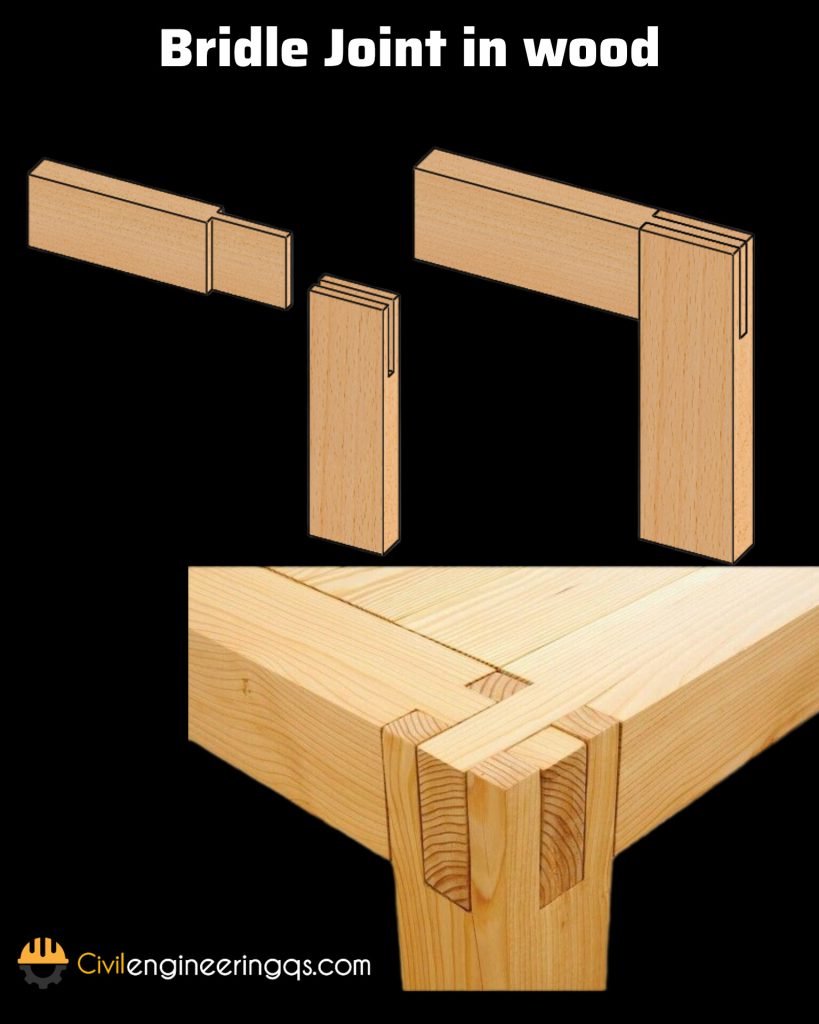

13. Bridle joint in wood work
The bridle joint is one of the strongest woodworking joints. This method involves cutting a slot or open-ended groove in the center of one piece of wood. The second piece of wood has its joining area shaped by cutting away material from both sides (forming a Tenon) to match the size of the groove in the first piece.
The two pieces are joined at their ends, fitting together. Glue or nails are often used to reinforce the connection, ensuring the joint stable. In this method commonly used in frame construction, furniture making, and decorative joinery.

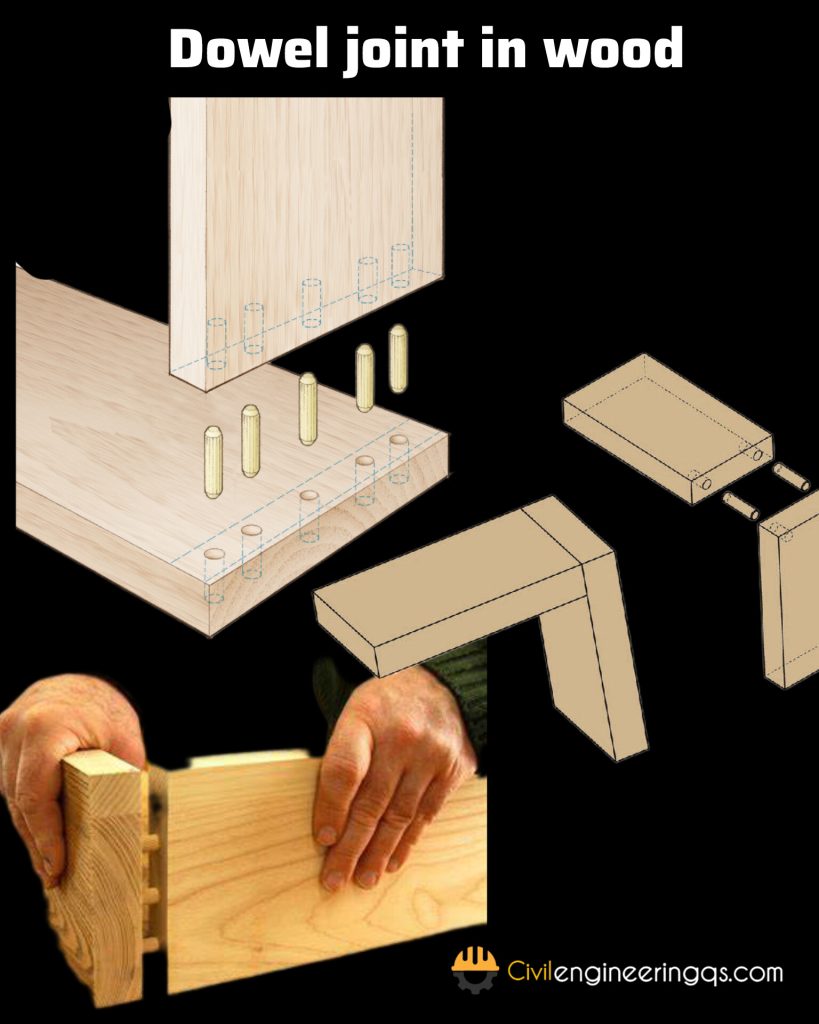

14. Dowel joint in wood work
In the dowel joint method, both pieces of wood are drilled with holes, and small dowels are tightly inserted into these holes to connect the two pieces. The dowels are carefully sized so that their thickness and length match the corresponding holes in the wood, as the dowels are hidden within the wood
This method creates strong connections while maintaining a clean and attractive appearance. It is commonly used in wooden frames, tables, chairs, and cabinet joints.
