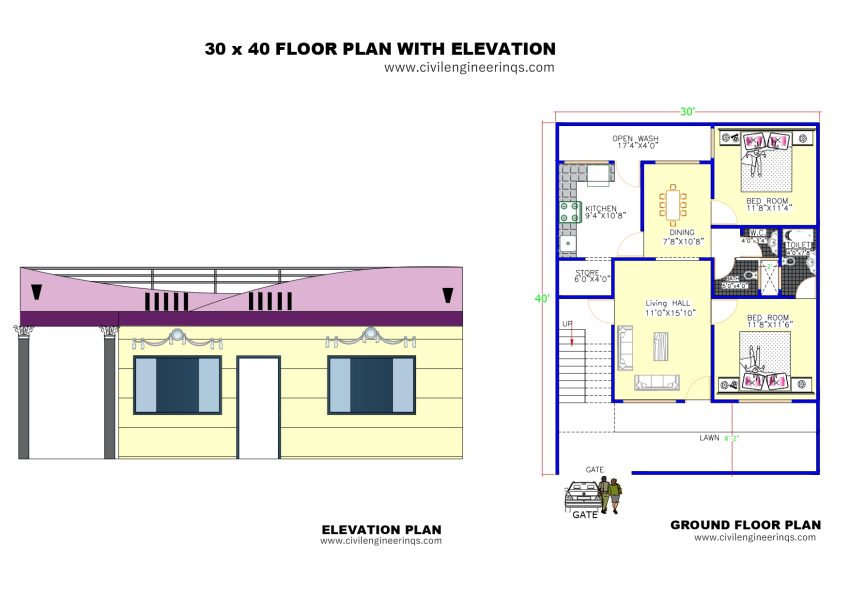

30 x 40 -Floor Plan with Elevation
Plot Size: 30′ x 40′ – 02 Bedroom House Design, 2BHK
Building Type: Ground Floor -Approximate 1200 sqft
Purpose: Ideal for Single & Joint Family
Ground Floor Features
-
Bedroom 1: 11’8″ x 11’4″ – Rear-side bedroom with ample space and natural lighting.
-
Bedroom 2: 11’8″ x 11’6″ – Front-side bedroom attached with Toilet Size 4′ x 7’8”
-
Living Hall: 11’0″ x 15’10” – Centrally located spacious area for family gatherings and relaxation.
-
Dining Area: 7’8″ x 10’8″ – Placed between kitchen and bedrooms, ideal for easy access during meals.
-
Kitchen: 9’4″ x 10’8″ – Located at the back with direct access to Open Wash Area: 17’4″ x 4’0″
-
Store Room: 6’0″ x 4’0″ – Attached to the kitchen for pantry and storage use.
-
Toilet: 5‘0″ x 4’0″ – Common toilet located near the dining and bedrooms for easy accessibility.
-
W.C.: 4’0″ x 3′ 4″ – Separate water closet (toilet) for convenience.
