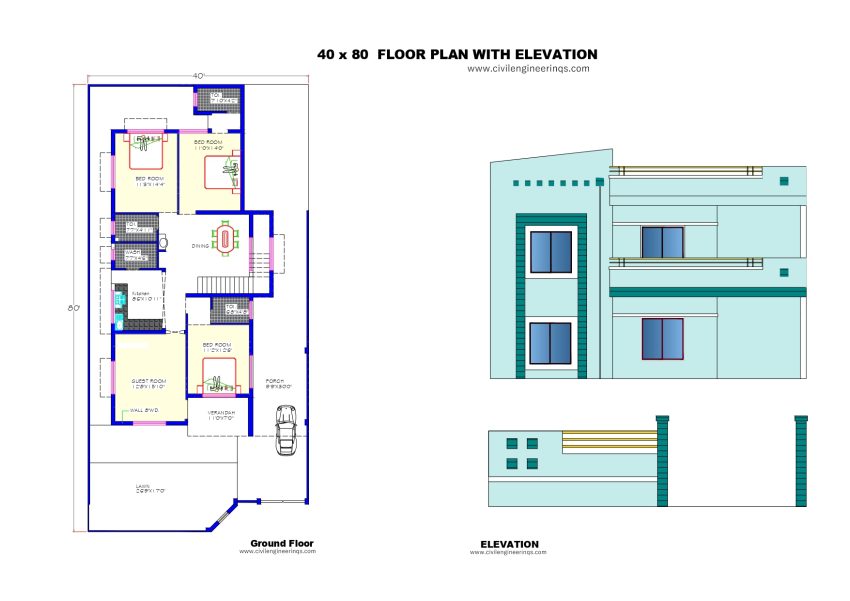

40 x 80 -3 BHK Floor Plan with Elevation

Plot Size: 40′ x 80′ – 03 Bedroom House Design 3BHK floor plan
Building Type: Ground Floor with Guest Room Facility
Purpose: Ideal for Joint Family, Appro-3200 sqft

40′ x 80′-3 BHK House Floor plan

Bedroom 1: Size in this plan 11’3″ x 14’4″ – A comfortable rear bedroom and attached toilet (Bedroom 1): Size in this plan 7’7″ x 4’11”

Bedroom 2: Size in this plan 11’0″ x 14’0″ – A middle bedroom with good ventilation and attached toilet (Bedroom 2): Size in this plan 7’1″ x 4’2″

Bedroom 3: Size in this plan 11’2″ x 12’6″ – A front-side bedroom, ideal for guests or kids, with attached Toilet (Bedroom 3): Size in this plan 6’6″ x 4’6″

Guest Room: Size in this plan 12’5″ x 15’0″ – Spacious room located near the entrance, perfect for guests or elders.

Dining Area: Centrally placed with easy access to kitchen and all bedrooms.

Kitchen: Size in this plan 8’6″ x 10’1″ – Well-designed kitchen next to the wash area for convenience.

Wash Area: Size in this plan 7’7″ x 4’6″ – Functional wash area attached to kitchen.

Common Toilet: Size in this plan 7’7″ x 4’6″ – Accessible from hall area, ideal for visitors.

Porch (Parking): – Long covered parking space with direct access to the house.
