Types of Stirrups Used in Reinforcement

Stirrups

Stirrups is an steel reinforcement bars (rebar) shaped into closed loops, typically used in reinforced concrete footing, Column, beam & slabs. They are positioned perpendicular to the longitudinal reinforcement bars and are tied to them to create a cage-like structure.

Stirrups provide lateral support for longitudinal reinforcement to prevent the buckling & improving the shear resistance of the concrete.

stirrups are designed to resist shear forces and to hold the main reinforcement bars also providing stability & Prevent the crack from heavy loads Shape of stirrups designed based on the structure

Based on shape its classified in following types

Square Stirrups
Rectangular Stirrups
Triangular Stirrups
Diamond Stirrups
Circular Stirrups
Spiral (or) Helical Stirrups

Based on the number of vertical bars or legs classified in following types

Single legged Stirrups
Two legged Stirrups
Four legged Stirrups
Six legged Stirrups

Square Stirrups

Square stirrups are commonly used in structural elements with square cross-sections in residential, commercial, and industrial buildings.

These stirrups is help to maintain the shape and position of the concrete reinforcement, also ensuring stability under load.

Square stirrups are simple design, effective shear resistance, commonly used in square columns and beams.

Minimum Number of Bars: 4 longitudinal bars

Rectangular Stirrups

Rectangular stirrups is a most common type in construction

Theses types are designed to resist shear forces and to hold the main reinforcement bars also providing stability & Prevent the crack from heavy loads.

Rectangular stirrups are commonly used in structural elements with Rectangular cross-sections in residential, commercial, and industrial buildings.

Minimum Number of Bars: 4 longitudinal bars

Triangular Stirrups

Triangular stirrups are less commonly used to compare square or rectangular types of stirrups.

But these kind of stirrups are highly effective specific structural situations.

these stirrups are typically used in triangular or trapezoidal beams and load-bearing members

Triangular stirrups has good shear resistance and are especially useful in structures with unconventional shapes or design constraints.

Minimum Number of Bars: 3 longitudinal bars

Diamond Stirrups

Diamond-shaped stirrups, are used in construction where the column & beam required non standard cross section.

Due to this shape its called as diamond shape stirrups, these diagonal shapes provides shear resistance and lateral support to the structure.

This type stirrups also used in less commonly to compare other types.

Minimum Number of Bars: 4 longitudinal bars

Circular Stirrups

Circular stirrups are used in the construction of round columns, piers, and piles.

These circular shape distribute the load equally around the circular cross-section to prevent the crack under the high high compressive forces or loads.

Circular stirrups are commonly used in industrial structures, bridges, and high-rise buildings where circular columns are designed.

Minimum Number of Bars: 6 longitudinal bars

Spiral (or) Helical Stirrups

Spiral (or) helical stirrups are designed commonly cylindrical columns or piers where designed.

These stirrups are a continuous steel reinforcement that surrounds the vertical bars in a spiral Arrangement its provides additional support to the structure.

These stirrups used to improve the load bearing capacity & ductility of the structure, particularly under seismic loads or in high-rise buildings.

Single-Legged Stirrups

These Single legged stirrups have an one vertical leg, its not commonly used in concrete structure, They provide minimal reinforcement and are mainly for light structures.

Two-Legged Stirrups

These double legged stirrups have an two vertical leg in both side, these stirrups mostly used in where medium shear reinforcement is required.

Four-Legged Stirrups

These four legged stirrups have an four vertical leg, these stirrups is an most common type of stirrups, its designed for where we need more lateral strength.

Six-Legged Stirrups

These six legged stirrups have an six vertical leg, these type of stirrups are used in heavily loaded column & beams. such as high-rise buildings, bridges, etc..

How to Calculate Cutting Length of Rectangular Column Ties (Stirrups)

How to Calculate Cutting Length of Circular Ties (Links)

Why Bitumen Coating is applied for Footing & columns

Bitumen painting is especially common in Basement foundations such as (column and footing & PCC), Retaining walls, Underground structures such as under ground water tank, septic tank, sewage tank, etc. & Areas with high water tables or flooding risks.

There are several reasons behind the application of bitumen coating on footings and columns. The following factors are important

1. Waterproofing

2. Protection Against Chemical

3. Anti-corrosion for Reinforcement

4. Improved Durability

5. Adhesion Enhancement

1. Waterproofing

Bitumen is a hydrophobic material. Its makes a protective barrier that helps prevent water penetration to footings and columns. Waterproofing is necessary in areas where the sea level is high. This is especially crucial in areas where the footing may be exposed to groundwater or moisture.

2. Protection Against Chemical

Also Bitumen is protect the footing & Columns from the harmful chemicals present in the soil, Those chemicals may make some corrosion the concrete or steel reinforcement, such as chlorides or sulfates.

3. Anti-corrosion for Reinforcement

Bitumen also protects the reinforcement steel from corrosion due to moisture ingress. This is important in maintaining the strength and load-bearing capacity of the footing.

4. Improved Durability

The coating helps to increase the durability of the foundation (Column, Footing, PCC) by protecting from environmental factors such as moisture, salts, and acids in the soil, It helps prevent the weakening of the footing.

5. Adhesion Enhancement

Also one important factor for bitumen coating applied on footing or column, Bitumen improves the bond between the concrete surface of the footing and other materials, such as waterproof membranes, protective layers, or soil.

Other alternatives to bitumen include

Epoxy coating
Polyurethane coatings
Acrylic coatings
Cement-based coatings

APPLICATION METHOD OF BITUMEN FOR FOOTING & COLUMN

1. Surface Preparation :- Clean the footing & column surface remove dust & loose particles form the footing & Column

2. Priming :- Heat the bitumen (if it’s a hot-applied bitumen) if For cold-applied bitumen, no heating is necessary, Apply the bitumen through brush, roller or spray as convenient method as per site condition. Make-sure that all edges and surfaces covered with bitumen.

3. Layering :- if the project specification is mentioned that multiple layer bitumen coating, every layer should be applied after completely dry that the old layer.

4. Drying Time & Inspection :- Allow the bitumen coating to dry and cure properly, Drying time may vary depending on the environment condition. typically its takes 16 to 48 hours, After drying, inspect the coating for any missed spots or uneven areas. If necessary, reapply bitumen to ensure complete coverage.

How to Calculate Unit Weight of Reinforcement Steel

Calculate Unit Weight for Reinforcement Steel

Knowing the weight of steel bars is important for any construction project. In this post, we explain how to easily calculate the weight of steel bars from 6mm to 40mm in size using a simple formula. This guide will help you plan your materials more accurately and avoid mistakes.

Standard Wastage Percentages for Common Construction Materials – PART-02

Standard Wastage Percentages for Common Construction Materials – Part – 02

In previous post we have seen some common construction materials wastage percentage , so this post is continuity for the common construction material wastages
In this material wastages will help us various factor such as estimation, Material order, cost control & quality control.
Every materials have an different wastage based on their usage, handling, and application methods, Proper planning & handling can help us to minimize the wastages it will help us to complete the project with in the project & timeline.

Standard Wastage Percentages for Common Construction Materials – PART-01

Standard Wastage Percentages for Common Construction Materials - PART-02

S.NO	Material	Usage	Wastage %
21	Glass (window panes, glass blocks)	Windows and partitions	5-10%
22	Aluminum	Frames, cladding, and roofing	3-5%
23	Steel Sheets	Roofing, windows, skylights	3-5%
24	Fiber Cement Board	Cladding and partitions	5-10%
25	Ceramic Tiles	Flooring and wall cladding	5-10%
26	Porcelain Tiles	High-end flooring and walls	5-10%
27	Asphalt	Roads and roofing	3-5%
28	Bitumen	Waterproofing and roofing	3-5%
29	Granite	Countertops and flooring	5-10%
30	Limestone	Building facades and flooring	5-10%
31	Sandstone	Paving and cladding	5-10%
32	Bamboo	Sustainable building material and flooring	5-7%
33	Clay	Making bricks and tiles	2-3%
34	Insulation Materials (fiberglass, foam, rock wool)	Thermal and acoustic insulation	5-8%
35	Admixtures	Modifying concrete properties	1-2%
36	Waterproofing Membranes	Roofs and basements	10-15%
37	Polythene Sheets	Moisture barriers and temporary protection	3-5%
38	Adhesives and Sealants	Bonding and sealing	2-3%
39	Fasteners (nails, screws, bolts)	Joining and fixing materials	1-2%
40	Fiberboard	Partitions, ceilings, furniture	5-7%

Standard Wastage Percentages for Common Construction Materials – PART-01

Standard Wastage Percentages for Common Construction Materials – Part – 01

In construction projects, before ordering any kind of materials or Estimating quantities of any materials must be know about that wastage (%) Percentage, By knowing these wastage rates, we can make more accurate estimates and ensure that the right amount of material is available when needed, it will help us to complete the project on-time.

Every materials have an different wastage based on their usage, handling, and application methods, Proper planning & handling can help us to minimize the wastages it will help us to complete the project with in the project & timeline.

Standard Wastage Percentages for Common Construction Materials - PART-01

S.NO	Material	Usage	Wastage %
1	Cement	Concrete & plaster work	2-5%
2	Sand	Concrete & mortar work	5-10%
3	Aggregate	Concrete mixes	5-10%
4	Concrete	Structural work and slabs	2-5%
5	Reinforcement Steel	Reinforcing concrete structures	2-3%
6	Mortar	Plastering and masonry work	5-10%
7	Block	Masonry work for building walls	2-5%
8	Brick	Masonry work for walls	2-5%
9	Tiles	Flooring and wall cladding	5-10%
10	Marble	Flooring and countertops	5-10%
11	Stone	Paving, cladding, and landscaping	10-15%
12	Paint	Coating and finishing surfaces	2-5%
13	Stucco / Wall Putty	Surface finishing and smoothing	5-8%
14	Gypsum Board	Partitions and ceilings	5-10%
15	Gypsum Corniche	Decorative ceilings	5-10%
16	Drywall	Interior walls and ceilings	5-10%
17	PVC Ceiling Panels	Decorative ceilings	5-8%
18	Plywood	Furniture, flooring, and formwork	5-10%
19	Steel	Structural support and framework	2-3%
20	Wood (timber, hardwood, softwood)	Construction, flooring, and carpentry	5-10%

List of machinery, tools, and equipment for Construction Project

When a construction project is signed between the contractor and client, the consultant or client will ask the contractor to submit the list of machinery, tools, and equipment. The list will be important for various factors such as the following

Identify contractor potential – Through the machinery, tools, and equipment list, the consultant or client can identify the contractor’s potential and capacity.
Project planning – To make sure that the required machinery, tools, and equipment are available for the project.
Quality control – To make sure that the right tools, equipment, or machinery are used to ensure high-quality work.
Project timeline – To help complete the project on time.
Efficiency and cost analysis – To check if the equipment will help complete the project efficiently and within budget.
Resource planning – It will be helpful to suggest to the contractor to procure the necessary items if needed

Here is one of sample of Machinery, tools, and equipment list for Construction Project
If you need this Excel file click below download button to download

List of machinery, tools, and equipment for Construction Project

Main Contractor :-		Company Logo
Consultant :-
Project Title :-
Scope of Work :-
Location :-
S.no	Machinery	Numbers
1	Excavator	3
2	Bulldozer	2
3	Crane	2
4	Tower cranes	2
4	Concrete mixer	3
5	Backhoe loader	2
6	Dump truck	2
7	Compactor	4
8	Skid-steer loader	2
9	Pile driver	1
10	Asphalt paver	1
S.no	Equipment	Numbers
1	Power generators	3
2	Concrete pumps	3
3	Scaffolding	Quantity varies based on project size and height requirements
4	Air compressors	2
5	Welding machines	2
6	Vibratory rollers	2
9	Lighting towers	10
10	Surveying equipment (e.g., total station)	Quantity varies based on project size and height requirements
11	Concrete Spray Machine	3
12	Concrete Vibrator Machine	3
13	Electric Paint Mixture	10
14	Hammer Drill / Driver	5
15	Jack Hammer	5
16	Portable Generator	5
17	Portable Welding Machine	6
18	Spray Painting Machine	10
19	Circular Saw	3
20	Battery Drill	10
S.no	Tools	Numbers
1	Levels	5
2	Trowels	3
3	Shovels	10
4	Hammers	15
5	Wrenches	50
6	Tape measures	50
7	Safety gear (e.g., helmets, gloves, harnesses)	50
8	Mason trowel	50
9	Wheel barrow	5
10	Chisel	50

MEP Clearance Form for Prior Start of Civil Work

MEP – Mechanical, Electrical & plumbing work clearance Form to prior to start civil work

In construction industry all work interconnected with another work like civil works inter connected with MEP work , also MEP work is interconnected with civil work, Before commencing any construction work we have to co-ordinate with MEP team, make sure that all system of work are installed properly and tested as per project specification, also we have to get signature from the MEP team in MEP clearance form is necessary.

The MEP clearance form encourage communication between Civil & MEP team, this guarantees the both team aware the future & progress issues and can collaborate for a good construction process.

Mainly this will help for both team if any damages or not good quality of work done by MEP team they cant provide the clearance, because they will face issue after completion of civil work they have to break again and plaster again it will make them extra cost, manpower, materials.

Alternatively, if the civil team damages any MEP work after both parties have accepted it in the MEP clearance form, the MEP team retains the eligibility to impose backcharges for rework to rectify the damages.

Here is one of the sample MEP clearance form prior to start Plastering work . If you need the Excel file, please click the download button below.

Request For MEP Clearance form

REQUEST FOR MEP CLEARANCE
Main Contractor Company Logo		Sub Contractor Company Logo

Project Name :- Construction of B+G+23 floor Apartment		Date :
Main Contractor Name :-		Contract Ref No :
Sub Contractor Name :-		Request No :

Reason For Request :- To start plastering work to kitchen
Location :- Apartment 16 & 17 Kitchen
NOTE :- We request your confirmation of completion of MEP Work to start the civil works at the mentioned location.
Mechanical Engineer Comments
Conduit installation & testing completed, no objection for Plastering work

Electrical Engineer Comments
Switch box & wire pulling work is completed , no objection for Plastering work

Mechanical Engineer
Name
Signature
Electrical Engineer
Name
Signature
	Main Contractor Representative signature

This site clarification shall not authorize any change to the contract or constitute a variation to the contract sum or duration

List of Equipment’s, Machineries & tools form for consultant

When a construction project starts, consultant or Client will ask to the main contractors for a List of Equipment, tool & Machineries, the list will be helpful to find it out the main contractor have a sufficient equipment’s or not,

Also, it will be helpful to suggest the main contractor to buy a required Equipment’s, tools & Machineries also hire a required specific technician or operators to handle the equipment’s or machineries.

Also this helps in planning, verifying capacity, complying with regulations, maintaining quality, and managing risks. Essentially, it’s a way to make sure that the project progresses smoothly and successfully.

Here is one of Equipment, tool & Machineries list form for construction project, so if you want to submit the Equipment, tool & Machineries list to your project, you can modify form this form, if you need this excel file click below download

List of Equipment's, Machineries & tools form for consultant

Main Contractor		COMPANY LOGO
Client Name
Consultant
Project Title
Location
S.no	Machinery	Numbers
1	Excavator	3.00
2	Bulldozer	2.00
3	Crane	2.00
4	Tower cranes	2.00
4	Concrete mixer	3.00
5	Backhoe loader	2.00
6	Dump truck	2.00
7	Compactor	4.00
8	Skid-steer loader	2.00
9	Pile driver	1.00
10	Asphalt paver	1.00
S.no	Equipment	Numbers
1	Power generators	3.00
2	Concrete pumps	3.00
3	Scaffolding	Quantity varies based on project size and height requirements
4	Air compressors	2.00
5	Welding machines	2.00
6	Vibratory rollers	2.00
9	Lighting towers	10.00
10	Surveying equipment (e.g., total station)	Quantity varies based on project size and height requirements
11	Concrete Spray Machine	3.00
12	Concrete Vibrator Machine	3.00
13	Electric Paint Mixture	10.00
14	Hammer Drill / Driver	5.00
15	Jack Hammer	5.00
16	Portable Generator	5.00
17	Portable Welding Machine	6.00
18	Spray Painting Machine	10.00
19	Circular Saw	3.00
20	Battery Drill	10.00
S.no	Tools	Numbers
1	Levels	5.00
2	Trowels	3.00
3	Shovels	10.00
4	Hammers	15.00
5	Wrenches	50.00
6	Tape measures	50.00
7	Safety gear (e.g., helmets, gloves, harnesses)	50.00
8	Mason trowel	50.00
9	Wheel barrow	5.00
10	Chisel	50.00

Sample Manpower List for Construction Project

When a construction project begins, consultant or Client ask to the contractors for a manpower list of the project to ensure they have the right number of workers with the necessary skills available to complete the project on time and within budget.

This helps in planning, verifying capacity, complying with regulations, controlling costs, maintaining quality, and managing risks associated with insufficient staffing. Essentially, it’s a way to ensure that the project progresses smoothly and successfully.

Here is one of sample manpower list form for construction project ,so if you want to submit the manpower list to consultant you can modify form this, if you need this excel file click below download

List of Manpower

Company Logo
Main Contractors Name :-
Consultant Name :-
Client Name :-
Project Name :-
List of Manpower
S.no	Category of Staff	Total Nos
1	Executive Manager	1
2	Project Manager	1
3	Construction Manager	2
4	Project Engineer	2
5	Civil Engineer	4
6	Electrical Engineer	1
7	Mechanical Engineer	1
8	QA/QC	1
9	Quantity Surveyor	1
10	Secretary	1
11	Document Controller	1
12	Foreman	2
13	Chargehand	4
14	Machine Operator	2
15	Electrician	10
16	Plumbers	6
17	Pipe Fitter	8
18	Welder	4
19	Carpenter	8
20	Driver	3
21	Helper / Laborers	50

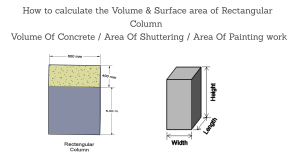

How to calculate the Volume & Surface area of Rectangular Column / Volume Of Concrete / Area Of Shuttering / Area Of Painting work

The following Article explain you that brief explanation of calculation of surface area & volume of rectangular column, surface areas used to find painting & Shuttering areas quantities, also Volume of rectangular is used to find the concrete quantities.

Surface Area calculation / Area of Shuttering / Area of Paint for rectangular column

The surface area of a column refers to the total area that is exposed on the exterior of the column. In the context of a column, surface area typically includes both the lateral surface area (the sides of the column) and the base area.

Surface area = Total Perimeter x Height

What is Perimeter

The perimeter of a rectangle is the total length of its boundary or the sum of the lengths of all its sides. For a rectangle, which has two pairs of equal and opposite sides, the perimeter (P) can be calculated using the formula:

Perimeter =2 X (length + width)

For Example as per above drawing

Length = 600 mm / 0.60 m

Width = 400 mm / 0.40 m

Height = 5.00 m

So, Perimeter = 2(0.6+0.4) = 2.00m

Surface Area = Perimeter X Height

Surface Area = 2.00 x 5.00 = 10m²

So, the Shuttering & Painting area of rectangular column is 10 m²

Volume of Rectangular column / Concrete volume calculation for rectangular column

Volume = Area X Height

Area of Rectangle = Length x Width

Area of rectangular column is = 0.60 x 0.40 = 0.24 m²

So, Volume of Rectangular column = Area X Height

Volume = 0.24 x 5.0 = 1.2 m³

Volume of rectangular column / Concrete quantity of Column is = 1.2 m³

How to calculate the Volume & Surface area of Circular Column / Volume Of Concrete / Area Of Shuttering / Area Of Painting work

How to calculate the Volume & Surface area of Circular Column / Volume Of Concrete / Area Of Shuttering / Area Of Painting work

The following Article explain you that brief explanation of calculation of surface area & volume of circular column , surface areas used to find painting & Shuttering areas quantity also Volume of circular is used to find the concrete quantity

Surface Area calculation / Area Of Shuttering / Painting area for circular column

Formula for Surface Area of circular column is = Circumference X Height (h)

Formula for circumference of circle is = 2 π r

So, The Formula for Surface Area of circular column is = 2 π r h

Value of π = 3.14

r – Radius of Column, So, r (radius) = Diameter of column / 2

As per drawing diameter of column = 400 mm

So, r (radius) =400 /2 = 200mm / 0.20 m

h – Height of Column, As per drawing diameter of column = 5.00m

So, the surface area of column is = (2 π r h)

(2 π r h) =2 x 3.14 x 0.20 x 5.00 = 6.28 m²

Total Surface Area / Painting Area / Shuttering area of Column is = 6.28 m²

Volume of Circular column / Concrete volume calculation for circular column

Volume = Area X Height

Area of circle = πr²

So, Volume of circular column = πr²h

So π=3.14, r=0.20 m & h = 5.0m

πr²h = 3.14 x 0.20 ²x 5.0

Volume of Circular column / Concrete quantity of Column is = 0. 628 m³

Typical sectional details for waterproofing works

Waterproofing

Waterproofing is a process or set of techniques used to make a surface or structure resistant to the penetration of water. The goal of waterproofing is to prevent water from entering or damaging a building or structure, thereby protecting it from water-related issues such as leaks, mold, and deterioration. Waterproofing can be applied to various surfaces, including roofs, walls, foundations, basements, bathroom and other structural elements.

Here is some collection of fundamental and standard typical waterproofing section details images, as outlined below.

Substructure Waterproofing Sectional Details

The images provided below represents typical sectional details for substructure waterproofing work

Substructure wall waterproofing Sectional Details

The images provided below represents typical sectional details for substructure wall waterproofing work

Roof Waterproofing Sectional Details

The images provided below represents typical sectional details for Roof waterproofing work

Foundation Waterproofing Sectional Details

The images provided below represents typical sectional details for Foundation waterproofing work

Floor & Bath waterproofing Sectional Details

The images provided below represents typical sectional details for Floor & bath waterproofing work

Tile & Interlock waterproofing Sectional Details

The images provided below represents typical sectional details for Tile & Interlock waterproofing work

Asphalt road waterproofing Sectional Details

The images provided below represents typical sectional details for asphalt road waterproofing work

Pavement Waterproofing Sectional Details

The images provided below represents typical sectional details for pavement waterproofing work

How to calculate concrete Volume for Rectangular, Square & Circular Column

Constructing columns is a crucial aspect of building structures, and accurately calculating the concrete volume is essential for a successful construction project. Whether you’re working on rectangular, square, or circular columns, the process involves some straightforward mathematical formulas.

Volume Calculation for Circular column

Volume of Concrete = Cross Sectional Area X Height (h)

Cross sectional Area = πr2

As per drawing diameter (d) = 400 mm / 0.40 m

So, Radius (r) = d/2 =400 /2 = 200 mm / 0.20m

Cross sectional Area (πr2)= π x 0.20², (π = 3.14)

Cross sectional Area = 3.14 x 0.20² = 0.1256 m² (Square meter)

Volume of Concrete = 0.126 m² X Height (h)

As per drawing Height (h) = 5.00 m

So, Volume of Concrete is = 0.126 x 5 m² = 0.628 m³ (Cubic meter)

Volume Calculation for Rectangular column

Volume of Concrete = Cross Sectional Area X Height (h)

Cross sectional Area = Length (L) X Breath (B)

As per drawing L= 600 mm / 0.60 m & B= 400 mm / 0.40 m

Cross sectional Area = 0.60 x 0.40 = 0.24 m² (Square meter)

Volume of Concrete = 0.24 m² X Height

As per drawing Height (h) = 5.00 m

So, Volume of Concrete is = 5 x 0.24 m² = 1.2 m³ (cubic meter)

Volume Calculation for Square column

Volume of Concrete = Cross Sectional Area X Height (h)

Cross sectional Area = Length (L) X Length (L)

As per drawing L= 400 mm / 0.40 m

Cross sectional Area (L X L)= 0.40 x 0.40 = 0.16 m² (Square meter)

Volume of Concrete = 0.16 m² X Height

As per drawing Height (h) = 5.00 m

So, Volume of Concrete is = 5 x 0.16 m² = 0.80 m³ (Cubic meter)

Advanced Machineries in Construction – 4

The ensuing article provides important explanation about various construction machineries & tools, each playing a crucial role in advancing construction processes. Among the featured equipment are the Hammer drill / Driver, Drill press, walking stilts, Hydraulic Portable Scissor skyjack Lift , Hydraulic electric lift Scaffolding, Hand push pile cutting machine , Vibrating road roller / Mini Compactor , Portable Light Tower, Portable Lifting Hoist

Hammer Drill / Driver

“drill hammer/driver” together, it could be a combination tool that serves both drilling and driving functions. Some cordless drill/drivers on the market, for instance, can be used for both drilling holes and driving screws, offering versatility in a single tool. These tools often have adjustable settings for both drilling and driving modes.
Advantages
1. Cordless Options
2. Versatility & Convenience

Drill Press

A drill press, also known as a drilling machine or pedestal drill, is a stationary machine tool designed for precision drilling of holes in various materials. It consists of a base, a column, a table, a spindle, and a drill head. The primary purpose of a drill press is to provide accuracy, stability, and repeatability in drilling operations.
Advantages
1. Precision and Accuracy
2. Stability and Control

Walking Stilts

Walking stilts are long poles equipped with footrests or platforms near the bottom, allowing users to elevate themselves above the ground and walk at an increased height. These stilts are commonly used for various purposes, including painting & small height works in construction. Stilts can be made from materials such as wood, aluminum, or fiberglass, and they come in different designs and sizes to accommodate users of varying heights and skill levels.
Advantages
1. Cost Effective for small height work to avoid scaffolding
2. Efficiency & Cost saving

Hydraulic Portable Scissor skyjack Lift

A Hydraulic Portable Scissor Skyjack Lift, often referred to as a scissor lift, is a type of aerial work platform designed to elevate workers and their equipment to various heights. It operates on a scissor mechanism, which extends vertically when the lift is activated. These lifts are commonly used in construction, maintenance, warehousing, and other industries where workers need to access elevated areas.
Advantages
1. Versatility in Height Access
2. Stability and Safety

Hydraulic electric lift Scaffolding

A hydraulic electric lift scaffolding is a type of scaffolding that uses both hydraulics and electricity to raise and lower the platform. It’s essentially a platform that’s mounted on a mobile base and can be raised and lowered to different heights using a hydraulic system powered by an electric motor.
Advantages
1. Safety & Efficient
2. portable & Durable

Hand push pile cutting machine

A pile cutting machine is typically used to cut and remove piles or columns in construction projects. It could be a hydraulic, electric, or diesel-powered machine, depending on the design and size. The term “hand push” might imply that the machine is manually operated or pushed by an operator.
Advantages
1. Efficient
2. Versatility & Convenience

Vibrating road roller / Mini Compactor

A vibrating road roller, also known as a mini compactor, is a versatile piece of construction equipment used to compact soil, asphalt, and other materials. They come in various sizes, with mini compactors being smaller and hand-operated, while larger ones can be ridden or even have enclosed cabs.
Advantages
1. Maneuverability & Efficient
2. Improved compaction:

Portable Light Tower

A portable light tower is a mobile illumination system designed to provide temporary lighting in outdoor or remote locations. These towers are commonly used in construction sites, outdoor events, emergency situations, roadworks, and other scenarios where temporary and powerful lighting is required. The towers typically consist of a mast, light fixtures, and a power source.
Advantages
1. Versatile Lighting Solutions
2. Quick Deployment and Mobility

Portable Lifting Hoist

A portable lifting hoist, also known as a portable hoisting device or portable electric hoist, is a piece of equipment designed to lift and move heavy loads. It is a versatile tool commonly used in construction, workshops, warehouses, and other settings where lifting and positioning of heavy objects are required. Portable lifting hoists are available in various capacities and configurations to suit different applications
Advantages
1. Flexibility and Mobility
2. Compact Design

Different Types of MS bars / Mild Steel bars

Mild steel bars are widely used construction materials made from low carbon steel. They are versatile and find applications in various industries, especially in construction and manufacturing. Mild steel bars are known for their ductility, weld ability, and ease of fabrication. Different types of mild steel bars are available to suit specific applications. Here are some common types of mild steel bars

MS Round Bar / Mild Steel Round Bar

MS (Mild Steel) Round Bar is a cylindrical steel rod with a circular cross-section, made from low carbon steel. Its characteristics, including ductility and weldability, make it versatile for applications in construction (reinforcing concrete structures), manufacturing (producing machinery components), and general fabrication (constructing frames and supports). Due to its even force distribution and adaptability, MS round bars are also used in automotive components, bolts, and decorative items, playing a crucial role in various industries.

MS Square Bar / Mild Steel Square Bar

MS (Mild Steel) Square Bar is a steel bar with a square cross-section, crafted from low carbon steel. Its characteristics, including ductility and ease of welding, make it versatile for applications in construction, manufacturing, and general engineering. With a stable square profile, MS square bars are commonly used for structural supports, frame fabrication, and producing machinery components. Their adaptability extends to furniture production, where they provide both strength and a visually appealing design. These bars play a vital role in multiple industries due to their reliable performance and ease of use.

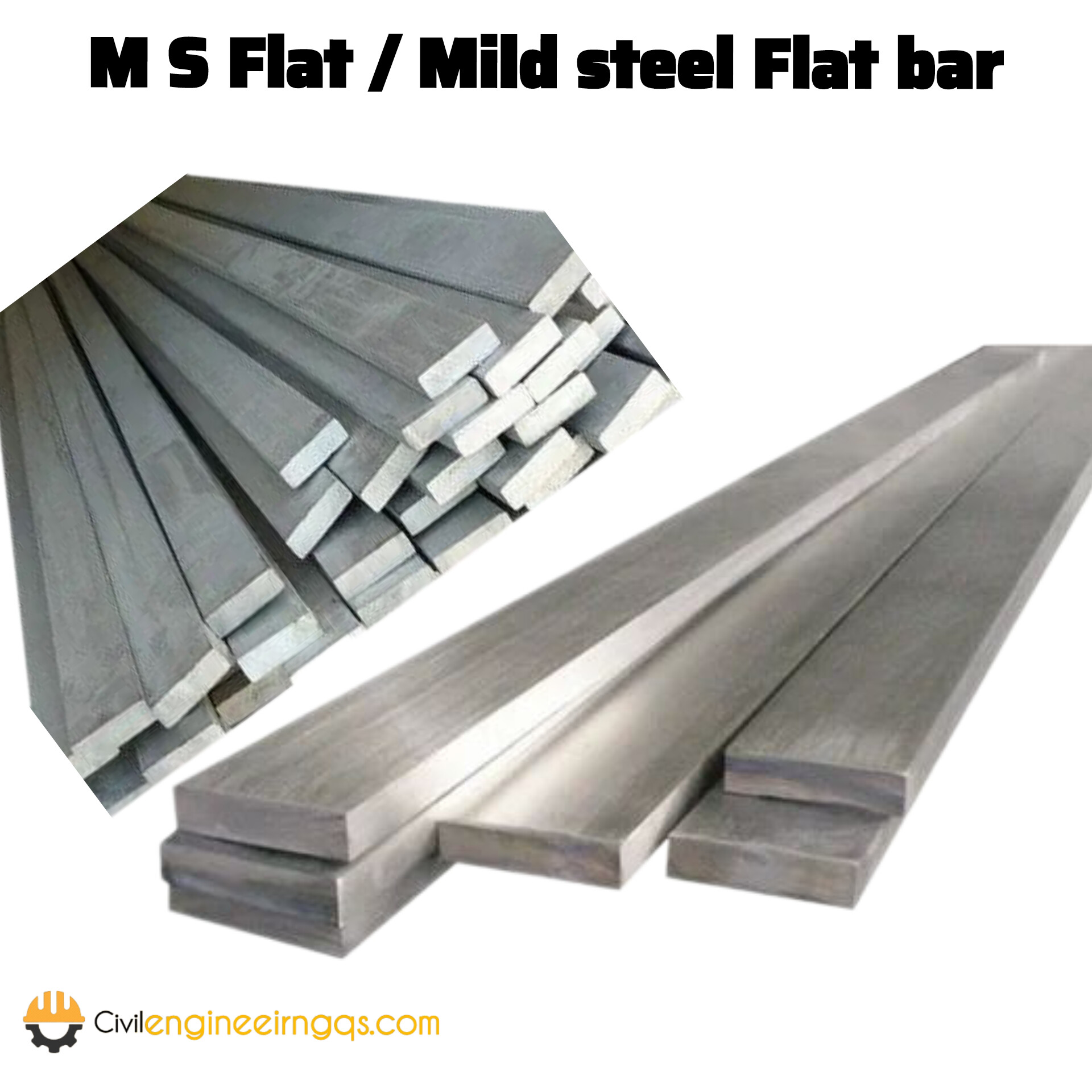

MS Flat Bar / Mild Steel Flat Bar

MS (Mild Steel) Flat Bar is a rectangular steel bar characterized by its flat and even surface. Crafted from low carbon steel, this versatile bar is widely used in construction for creating braces, frames, and base plates. It finds applications in manufacturing for producing machinery components and plays a crucial role in general fabrication tasks. With its straightforward design, MS flat bars contribute to the stability and structural integrity of diverse applications, ranging from supports and platforms to decorative items and furniture.

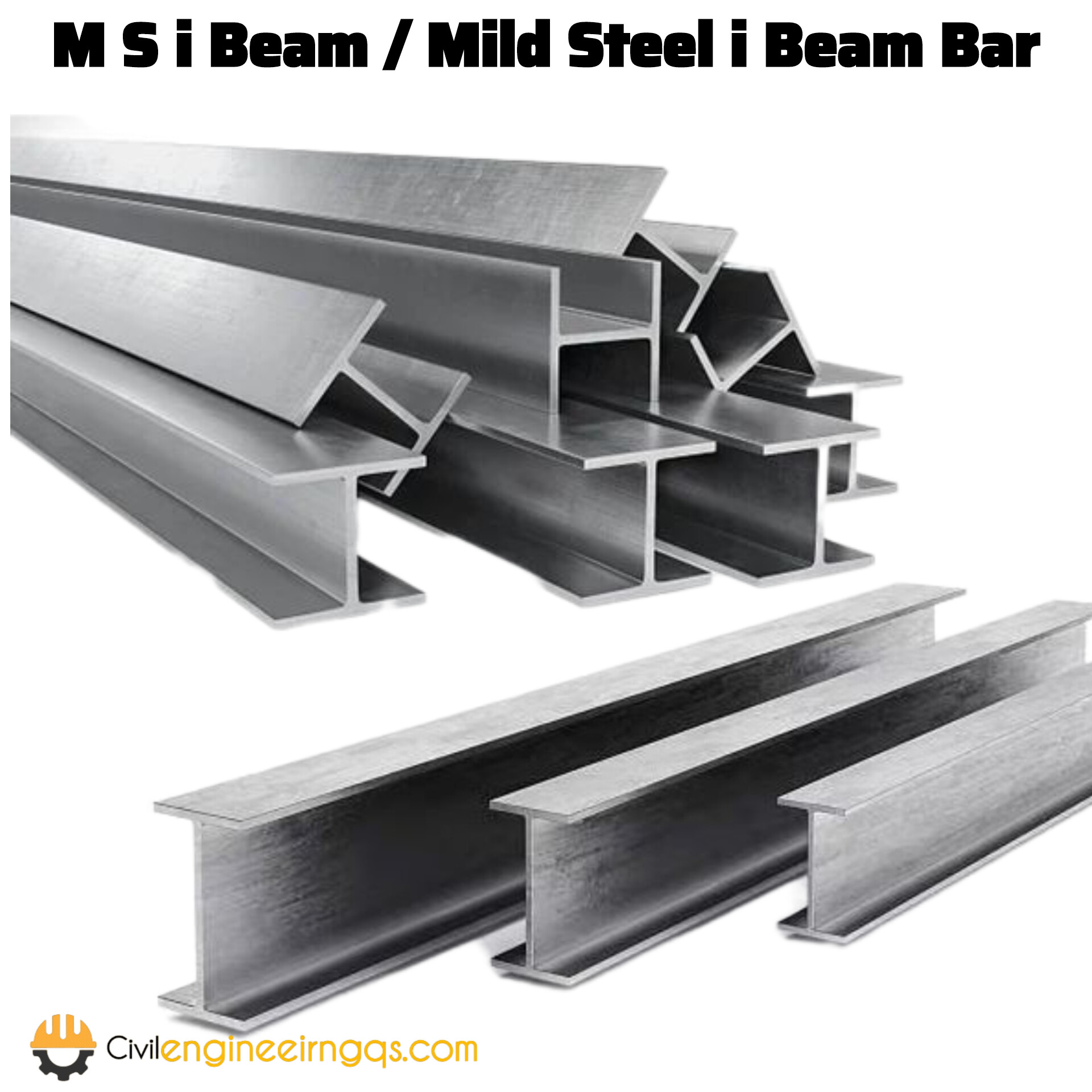

MS “I” beam Bar / Mild “I” beam Bar

MS (Mild Steel) I-beam Bar is a structural steel bar shaped like the letter “I,” comprising a vertical web and horizontal flanges. Recognized for its strength and adaptability, it plays a vital role in construction projects, offering support for floors, roofs, and structural frameworks. Widely used in bridges, industrial buildings, and machinery frames, its standardized sizing simplifies application across diverse projects. The I-beam’s design ensures efficient load distribution, making it a reliable choice for enhancing stability and load-bearing capacity in various engineering and construction endeavors

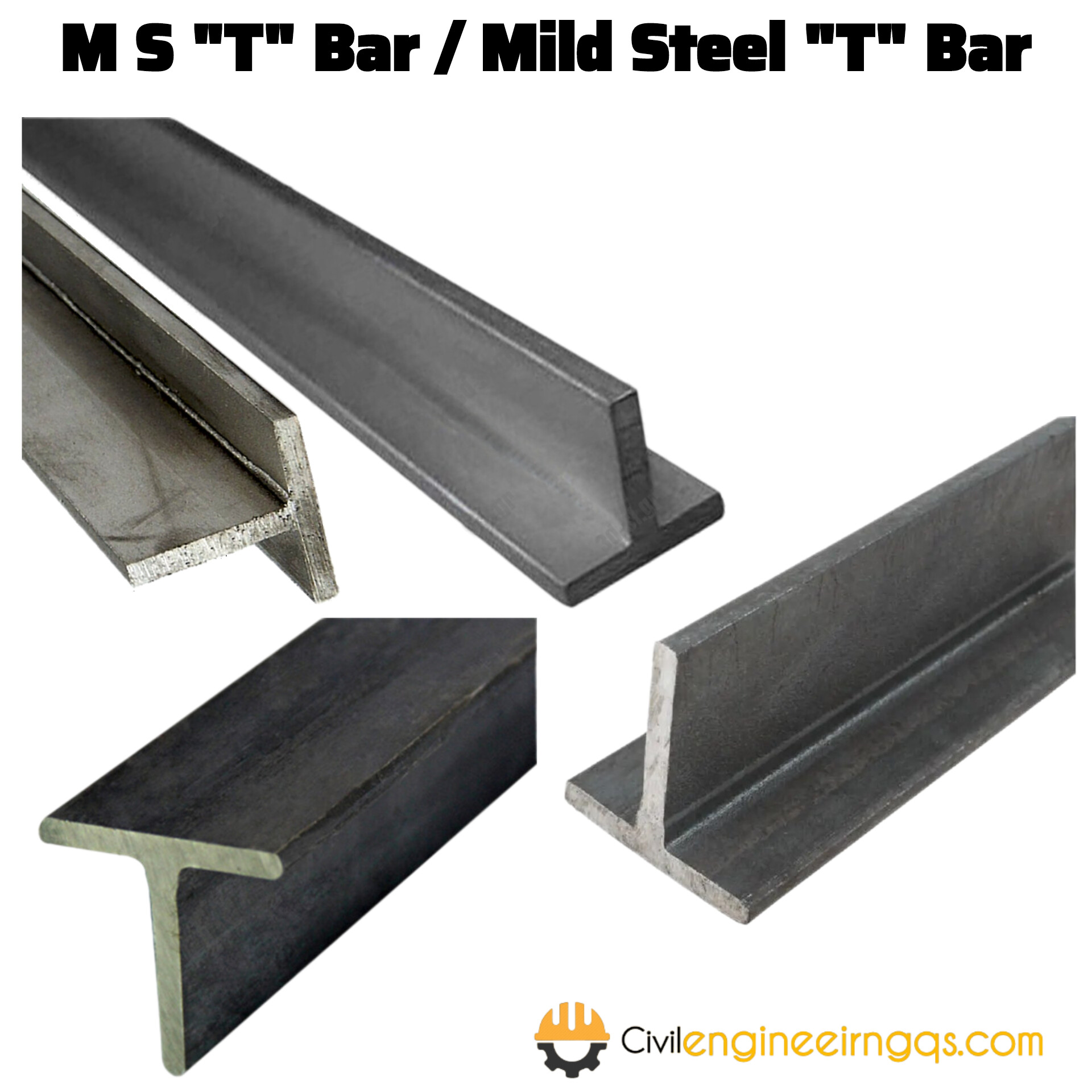

MS “T” Bar / Mild Steel “Round “T” Bar

MS (Mild Steel) T-bar is a T-shaped steel section that plays a pivotal role in construction and structural engineering. Its cross-sectional design includes a vertical stem (web) and horizontal flanges, offering versatility and strength for various applications. Widely used in building frames, braces, and industrial structures, MS T-bars provide essential structural support and contribute to the stability of diverse projects. Recognized for their efficient load distribution, these bars find application in manufacturing machinery frames and are crucial components in both small-scale constructions and large-scale infrastructure projects.

MS Channel Bar / Mild Steel Channel Bar

MS (Mild Steel) Channel Bar is a steel section with a distinctive “C” shape, featuring parallel flanges connected by a vertical web. Its versatile design makes it a key component in construction, where it provides crucial structural support in building frames, industrial structures, and infrastructure projects. Known for its efficient load-bearing capacity, MS channel bars are also utilized in applications like support frames and railings, showcasing their importance in a wide range of engineering and construction endeavors.

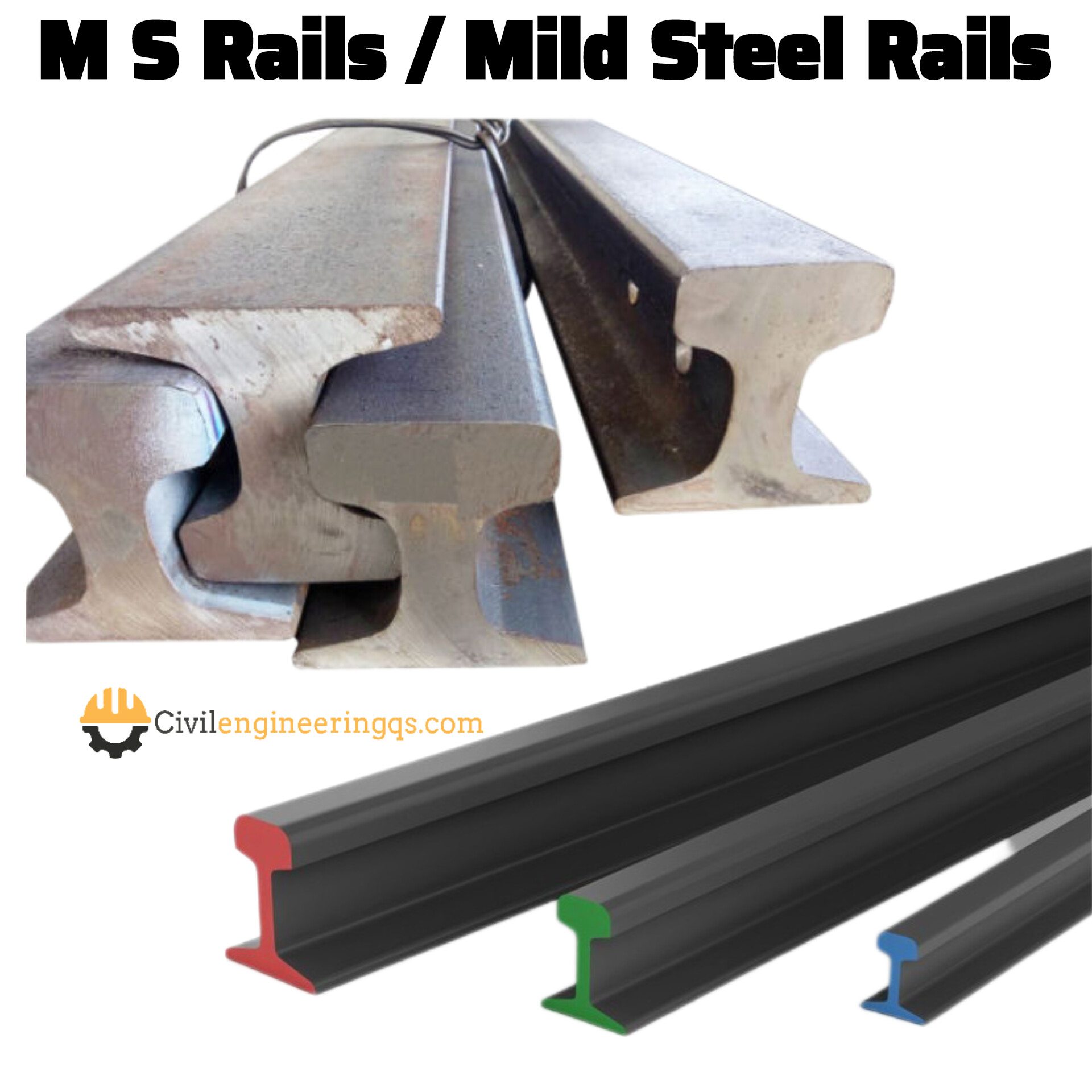

MS Rails / Mild Steel Rails

Mild steel rails, crafted from low carbon steel, are elongated bars integral to railway tracks and industrial systems. Their straightforward, durable design ensures a stable path for trains, vehicles, and materials. Standard in size, these rails find applications not only in traditional railways but also in industrial tracks, material handling systems, and even amusement park rides like roller coasters. Additionally, they play a role in constructing elevated platforms. The choice of mild steel offers a balance of strength and flexibility, making these rails pivotal in facilitating smooth and reliable movement in diverse transportation and industrial scenarios.

MS Equal Angle Bar / Mild Steel Equal Angle Bar

Mild steel equal angle bars are L-shaped steel bars with equal-length legs forming a right angle. Known for their versatility, these bars play a vital role in construction, offering stability and support in various projects. Whether used in building frameworks, racks, shelving, or engineering structures, their equal leg lengths ensure symmetrical support. The standardized sizes simplify their application, making mild steel equal angle bars a fundamental component in diverse construction and fabrication endeavors.

MS Un equal angle Bar /Mild Steel UnEqual Angle Bar

Mild steel unequal angle bars are structural steel bars with an “L” shape, featuring legs of unequal lengths. This asymmetry provides versatility for applications where uneven support or bracing is needed. Widely used in construction for framing, supports, and platforms, these bars also find applications in engineering projects that require specific design considerations. Their availability in standard sizes simplifies their integration into various projects, making mild steel unequal angle bars essential components for ensuring stability and structural integrity in diverse construction and fabrication applications.

Advanced Machineries in Construction – 3

CHAIN SAW

A chain saw is a portable mechanical saw that features a set of teeth attached to a rotating chain. It is commonly used for cutting through wood and other materials, and it is widely employed in activities such as forestry, tree felling, logging, pruning, and construction. Chainsaws can be powered by electricity, battery, or internal combustion engines.
ADVANTAGE
* Efficiency & Versatility
* Portability & Time saving

CIRCULAR SAW

A circular saw is a power tool that uses a round flat blade with teeth to cut various materials, typically wood, plastic, metal, or masonry. Circular saws are versatile and commonly used in woodworking, construction, and other applications where straight and precise cuts are required.
ADVANTAGES
* Speed and Efficiency
* Precision & easy to use

POLE SAW

A pole saw is a specialized type of saw mounted on the end of a long pole, designed for cutting branches and limbs in high or hard-to-reach areas, such as trees. It allows users to perform pruning and trimming without the need for a ladder or climbing. Pole saws are commonly used in landscaping, forestry, and arboriculture
ADVANTAGES
* Reach and Accessibility
* Safety and Efficiency

JIG SAW

A jig saw, in the context of power tools, is a versatile cutting tool that uses a reciprocating blade to make curved and intricate cuts in various materials such as wood, metal, plastic, and more. The blade moves in an up-and-down motion, allowing users to navigate the saw through the material to create detailed and customized cuts.
ADVANTAGES
* Versatility in Cutting
* Ease of Use and Maneuverability

MITER SAW

“Miter saw” is a power tool designed for making accurate and precise crosscuts and miter cuts in a variety of materials, typically wood. It’s commonly used in woodworking, carpentry, and other construction projects.
ADVANTAGES
* Accuracy in Cutting
* Versatility and Efficiency

RECIPROCATING SAW

A reciprocating saw, sometimes referred to as a “recip saw” or “sawzall” (a popular brand name for reciprocating saws), is a versatile power tool designed for a variety of cutting tasks. It features a push-and-pull (reciprocating) blade motion, making it suitable for both rough and precise cutting in various materials such as wood, metal, plastic, and more.
ADVANTAGES
* Versatility in Cutting
* Efficiency and Speed

TABLE SAW

A table saw is a versatile woodworking tool designed to make precise and efficient cuts in wood. It consists of a circular saw blade mounted on a horizontal table, with the blade protruding through a slot. Wood is pushed along the table and into the blade to make various cuts.
ADVANTAGES
* Precision Cutting & Professional Results
* Versatility, Efficiency & Time saving

SCROLL SAW

A scroll saw is a stationary power tool that is used for making intricate and detailed cuts in wood, metal, plastic, or other materials. It is particularly well-suited for precision work and creating decorative patterns or designs.
ADVANTAGES
* Intricate and Detailed Cuts
* Versatility and Control

TRACK SAW

A track saw is a specialized woodworking tool designed for making straight and precise cuts in large panels or sheets of wood, plywood, or other materials. It consists of a circular saw mounted on a guide rail or track, allowing for accurate and controlled cuts.
ADVANTAGES
* Straight and Accurate Cuts
* Portability and Versatility

ELECTRIC TILE SAW

An electric tile saw, also known as a wet tile saw, is a power tool used to cut ceramic, porcelain, stone, and other hard materials. It’s essential for making precise cuts in tiles for flooring, backsplashes, countertops, and other applications.
ADVANTAGES
* Precision Cutting & Professional Results
* Versatility, Efficiency & Time saving

Advanced Machineries in Construction – 2

The ensuing article provides important explanation about various construction machineries, each playing a crucial role in advancing construction processes. Among the featured equipment are the portable Generator, Plate compactor, Jack Hammer, Electric tile Saw, Table Saw, Electric Planer, Concrete mixture machine, Concrete Polishing Machine, Portable welding machine, Spray Painting Machine.

Plate Compactor
A plate compactor, also known as a plate tamper or wacker plate, is a versatile piece of construction equipment used to compact loose materials like soil, gravel, sand, and asphalt. It’s essentially a heavy steel plate that vibrates or impacts the ground, forcing air pockets out and bringing the particles closer together
ADVANTAGES
* Effective Compaction
* Time and Labor Savings

Concrete Polishing Machine
A concrete polishing machine is a specialized tool used in the process of polishing and refining the surface of concrete floors. Concrete polishing is a mechanical process that involves grinding and smoothing the surface to achieve a glossy and durable finish. This process is commonly used in various commercial, industrial, and residential settings to enhance the appearance and performance of concrete floors
ADVANTAGES
* Efficient and Quick Process
* Enhanced Aesthetics & Increased Light Reflectivity

Jack Hammer
A jackhammer, also known as a pneumatic drill or demolition hammer in some regions, is a powerful tool used for breaking apart hard materials like concrete, rock, and asphalt. It works by combining a hammer directly with a chisel, delivering rapid, percussive blows to pulverize the target material.
ADVANTAGES
* Efficient Demolition
* Adaptability to Various Materials

Portable Generator
A portable generator is a self-contained power source that you can move around and use to provide temporary electricity wherever it’s needed. It’s essentially a miniature power plant, typically powered by gasoline, propane, or even solar energy, that generates AC or DC electricity to run appliances, tools, and lights.
ADVANTAGES
* Emergency Power Source
* Versatility & Mobility

Portable Welding Machine
A portable welding machine is a compact and mobile device used for welding purposes. Welding is a process of joining materials, usually metals, by melting and fusing them together. Portable welding machines are designed to be easily transported to different locations, providing flexibility for welding tasks in various settings.
ADVANTAGES
* Energy Efficiency & Quick Setup
* Mobility & Flexibility in Power Sources

Concrete Mixer Machine
A portable concrete mixer is a machine used for mixing concrete at construction sites. It is a convenient and versatile equipment that allows construction workers to mix and transport concrete easily, especially in areas where a stationary concrete mixer may not be practical or available.
ADVANTAGES
* Mobility & On-Site Mixing
* Flexibility & Versatility in Power Sources

Electric Tile Saw
An electric tile saw, also known as a wet tile saw, is a power tool used to cut ceramic, porcelain, stone, and other hard materials. It’s essential for making precise cuts in tiles for flooring, backsplashes, countertops, and other applications.
ADVANTAGES
* Precision Cutting & Professional Results
* Versatility, Efficiency & Time saving

Table Saw
A table saw is a versatile woodworking tool designed to make precise and efficient cuts in wood. It consists of a circular saw blade mounted on a horizontal table, with the blade protruding through a slot. Wood is pushed along the table and into the blade to make various cuts.
ADVANTAGES
*Precision Cutting & Professional Results
* Versatility, Efficiency & Time saving

Electric Planer
An electric planer, also known as a power planer or hand planer, is a power tool used for shaping and smoothing wood surfaces. It works by shaving off thin layers of wood with a rotating blade,
ADVANTAGES
* Efficient Surface Smoothing finish
* Portable and Handheld

Spray Painting Machine
A spray painting machine, also known as a spray painter or paint sprayer, is a device that uses compressed air or other methods to atomize and propel paint particles onto a surface. This method provides an efficient and even coating of paint, making it widely used in various industries, including automotive, construction, furniture, and manufacturing.
ADVANTAGES
* Uniform coverage & Efficiency
* Labor, Material & Cost Savings

Advanced Machineries in Construction – 1

The ensuing article provides important explanation about various construction machineries, each playing a crucial role in advancing construction processes. Among the featured equipment are the concrete trowel machine, concrete vibrator, earth auger drill machine, electric hand push tile breaker, electric paint mixture machine, electric vibrating tamping rammer, hydraulic portable rebar cutter, portable chain saw machine, road cutter machine, and steel rebar binding machine.

Concrete Trowel Machine
A .power instrument called a concrete trowel machine is used to level and smooth freshly poured concrete. It is made up of a motor or engine connected to a revolving set of blades. The concrete’s surface is smoothed and free of ridges and irregularities as the blades revolve
ADVANTAGES
* Improved concrete quality
* Efficient and Rapid Finishing

Concrete Vibrator Machine
A construction instrument called a concrete vibrator is used to remove air bubbles and guarantee that freshly poured concrete settles properly. It usually comprises of a motor or flexible shaft attached to a vibrating head. The concrete vibrates and compacts when the vibrator is introduced, increasing the material’s strength and longevity.
ADVANTAGES
* Improved Concrete Strength and Durability
* Enhanced Surface Finish

Electric Vibrating tamping rammer
A construction tool for compacting soil, gravel, or other granular materials is an electric vibrating tamping rammer. In contrast to conventional gas-powered versions, this rammer runs on electricity. Its vibrating plate or foot effectively compacts the material, increasing soil density and offering a firm base for building projects.
ADVANTAGES
* Reduced Emissions and Noise
* Ease of Use and Maintenance

Road cutting Machine
A road cutting machine is a specialized equipment used in construction to create precise cuts in hard materials such as concrete or asphalt. It is often referred to as an asphalt or concrete saw. Usually, it is made up of a motorized blade fixed to a strong frame that enables precise and controlled cutting. For jobs like making openings for utility installations, mending road surfaces, and constructing expansion joints, road cutting equipment are indispensable.
ADVANTAGES
* Efficient Concrete and Asphalt Cutting
* Versatility and Adaptability

Electric Paint Mixture
An electric paint mixer is a device used in the painting and coating industry to efficiently blend and homogenize paint or other liquid coatings. It typically consists of an electric motor that drives mixing elements, such as blades or paddles, to ensure thorough mixing of pigments and additives in the paint. Electric paint mixers are designed to save time and effort compared to manual mixing methods.
ADVANTAGES
* Precision Cutting
* Time and Labor Efficiency

Steel bar / Rebar Binding Machine
A steel bar or rebar binding machine is a construction tool used to automate the process of securing steel reinforcement bars (rebar) with wire, forming a reinforced framework for concrete structures. The machine typically involves a portable unit with a mechanism for gripping, twisting, and cutting wire, Rebar binding machines are commonly employed in projects such as reinforced concrete construction
ADVANTAGES
* Consistent and Secure Bindings
* Efficiency and Time Savings

Hydraulic portable rebar cutter
A hydraulic portable rebar cutter is a specialized construction tool designed for cutting steel reinforcement bars (rebar) with ease and precision. It utilizes hydraulic power to efficiently cut through the tough and dense material of rebars. Portable and user-friendly, these cutters are often equipped with features such as a rechargeable battery or an external hydraulic pump, making them suitable for on-site use.
ADVANTAGES
* Portability and On-Site Use
* Precision and Speed

Earth Auger drill machine
An Earth Auger Drill Machine is a powered tool used for drilling holes in the ground, primarily for tasks like planting trees, installing fence posts, or digging for construction foundations. It typically consists of a rotating helical screw blade or drill bit powered by a gasoline engine or an electric motor. The auger drills into the soil, removing material from the hole
ADVANTAGES
* Efficient Hole Digging
* Versatility and Adaptability

Chain Saw machine
A chain saw machine is a portable, mechanical saw with a cutting chain driven by a gasoline engine or an electric motor. It is commonly used for tasks such as tree felling, pruning, and cutting wood. The chain saw’s design includes a set of teeth attached to a rotating chain, allowing for efficient cutting through wood or other materials. Chain saws are versatile tools widely used in forestry, landscaping, and construction
ADVANTAGES
* Efficient Cutting Power
* Versatility and Mobility

Electric Hand push Tile Cutter
An electric hand push tile cutter is a compact and portable tool designed for cutting ceramic and porcelain tiles. It features an electric motor that powers a cutting wheel or blade. The machine is manually pushed across the surface of the tile, and the cutting wheel scores the tile, allowing for a clean and precise break along the scored line. Electric hand push tile cutters are commonly used in tiling projects for their convenience, ease of use, and ability
ADVANTAGES
* Ease of Use
* Precision Cutting
