Multi-Story Residential Building with G+4 Floor AutoCAD & PDF Download

Posted on May 3, 2025

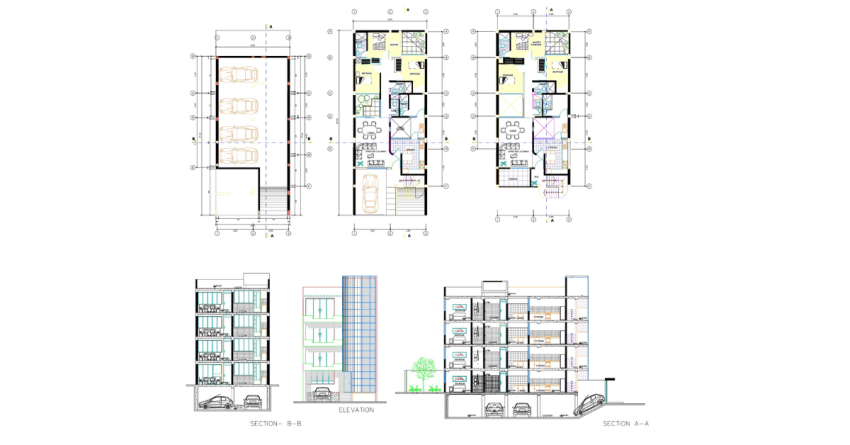

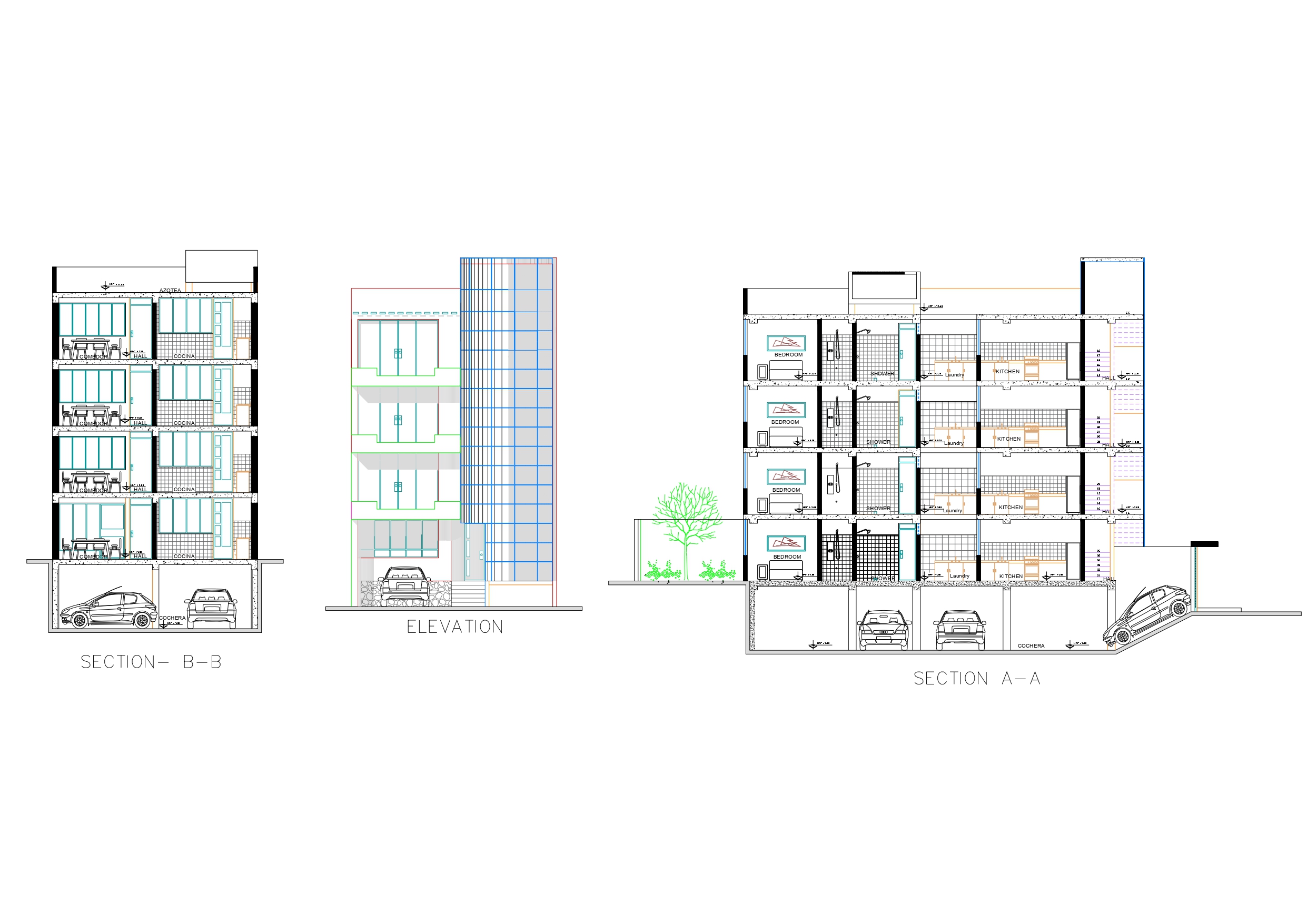

Multi-Story Residential Building with G+4 Floor

Plot Size: 8.00 meters (width) × 20.00 meters (length)
Building Type: Ground + 4 Floors (G+4)
Purpose: Ideal for rental apartments.

Download Pdf file
Download AutoCAD

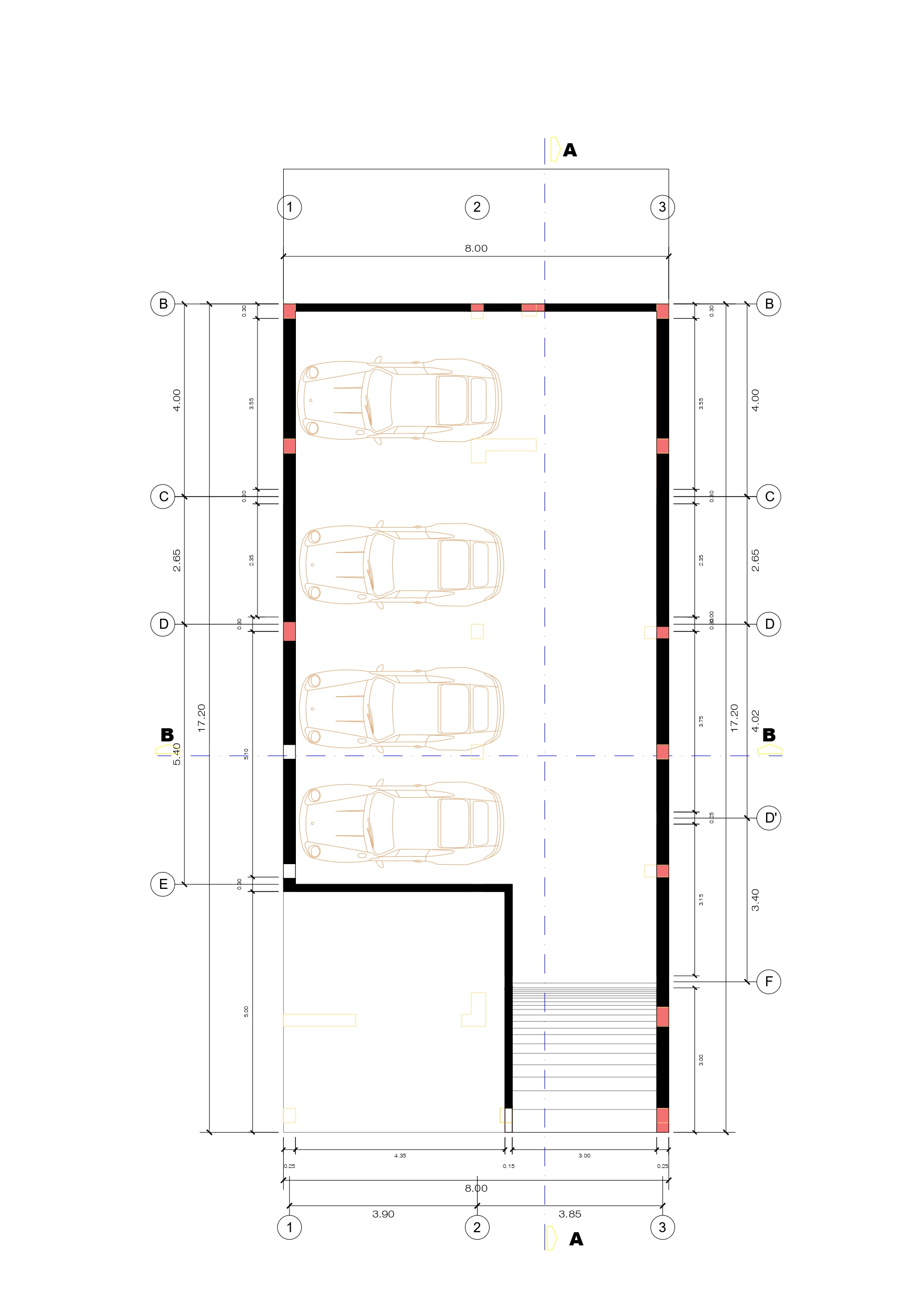

GROUND FLOOR

Covered Car Parking: can park  upto 4 cars comfortably.

Main Entrance & Staircase Access: Direct and secure access to upper floors from the main entry zone.

Service/Utility Area: Provision for storage or possible use as a security room or small office

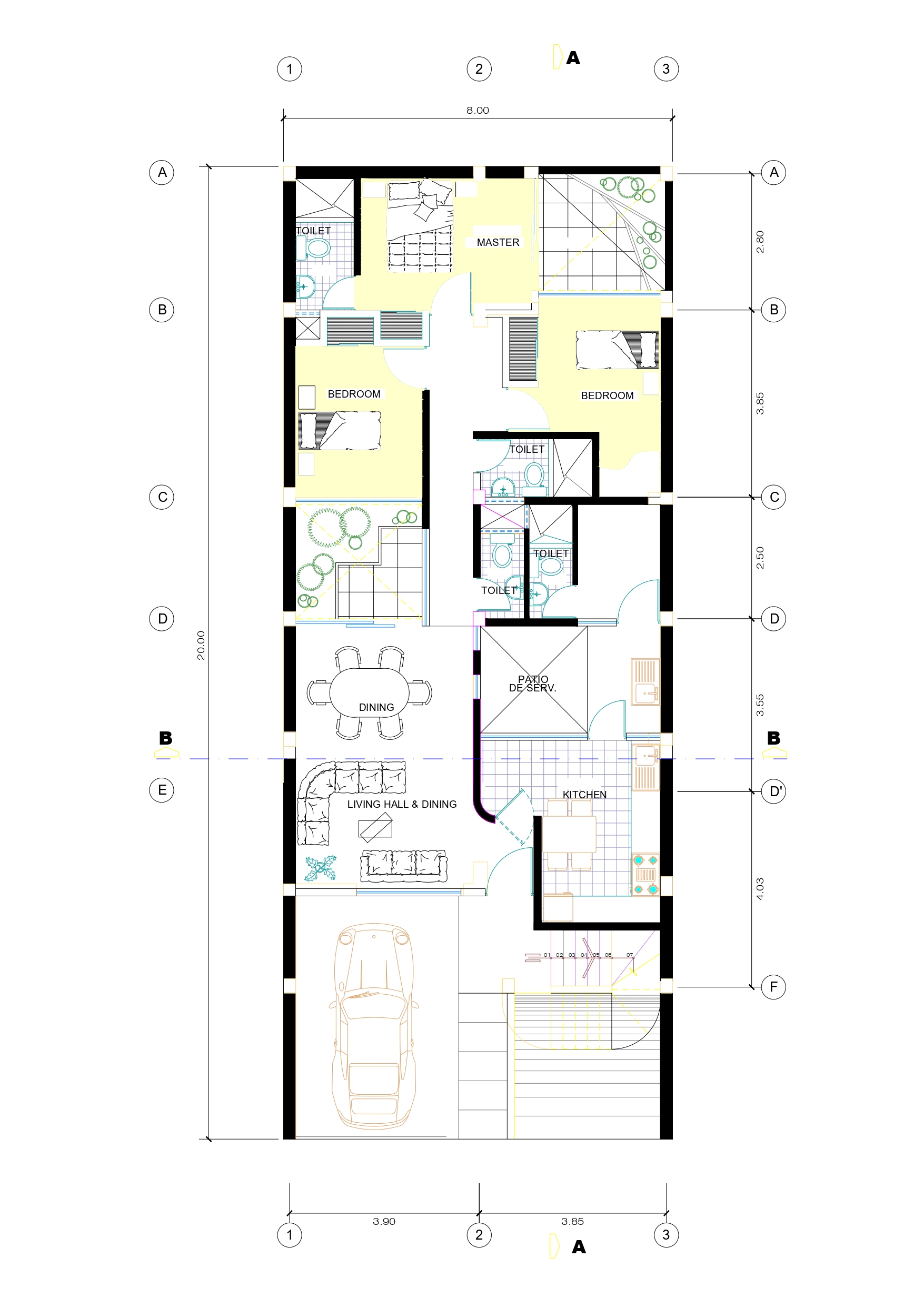

FIRST FLOOR

Living Hall & Dining Area: Open and spacious.

Kitchen: Well-ventilated kitchen

Bedrooms :Master Bedroom with attached bathroom. & 2 Standard Bedrooms

Toilets: Total 3 – two attached to bedrooms and one common toilet for guests.

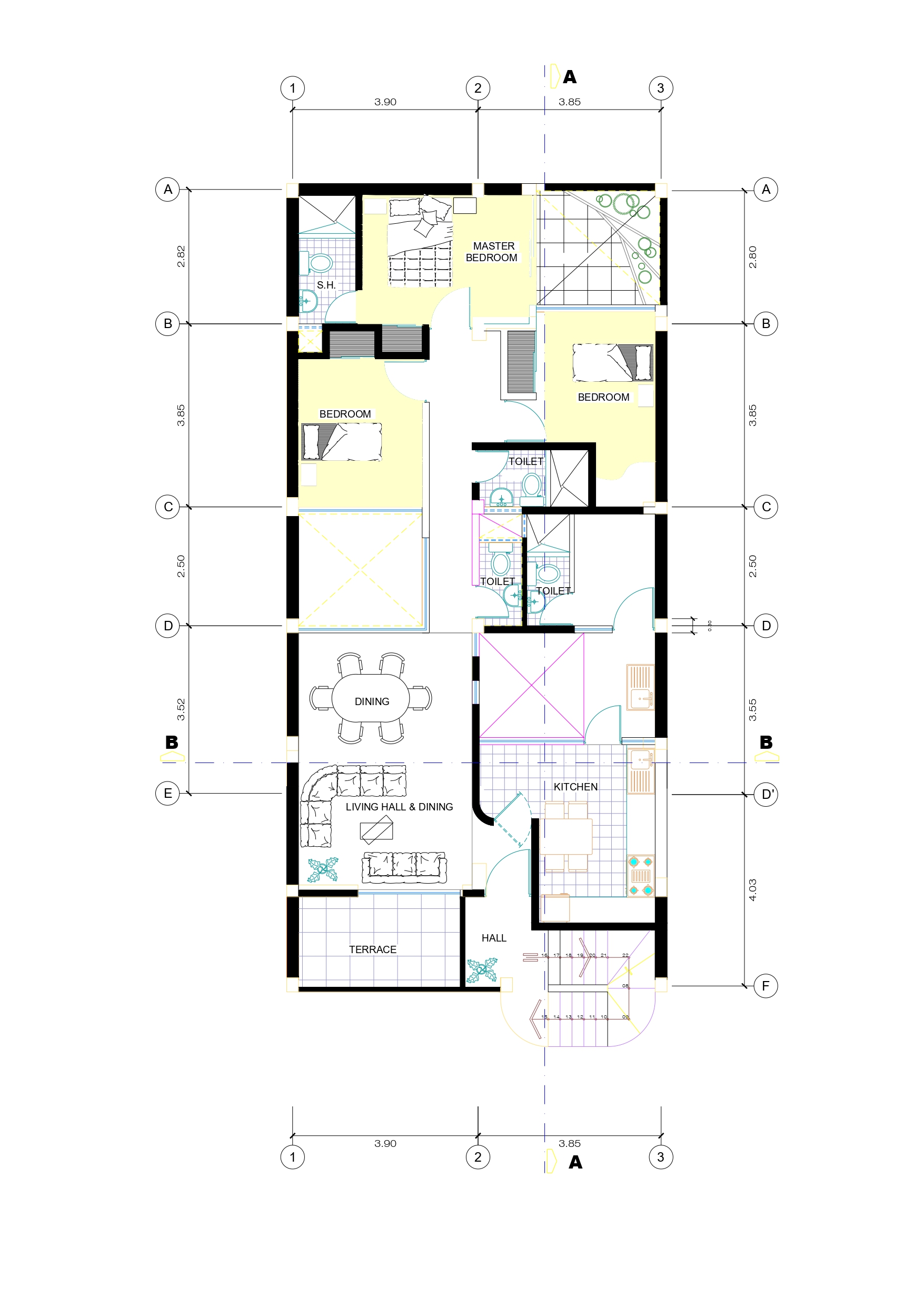

UPPER FLOORS

Living Hall & Dining Area: Open and spacious.

Kitchen: Well-ventilated kitchen

Bedrooms :Master Bedroom with attached bathroom. & 2 Standard Bedrooms

Toilets: Total 3 – two attached to bedrooms and one common toilet for guests.
